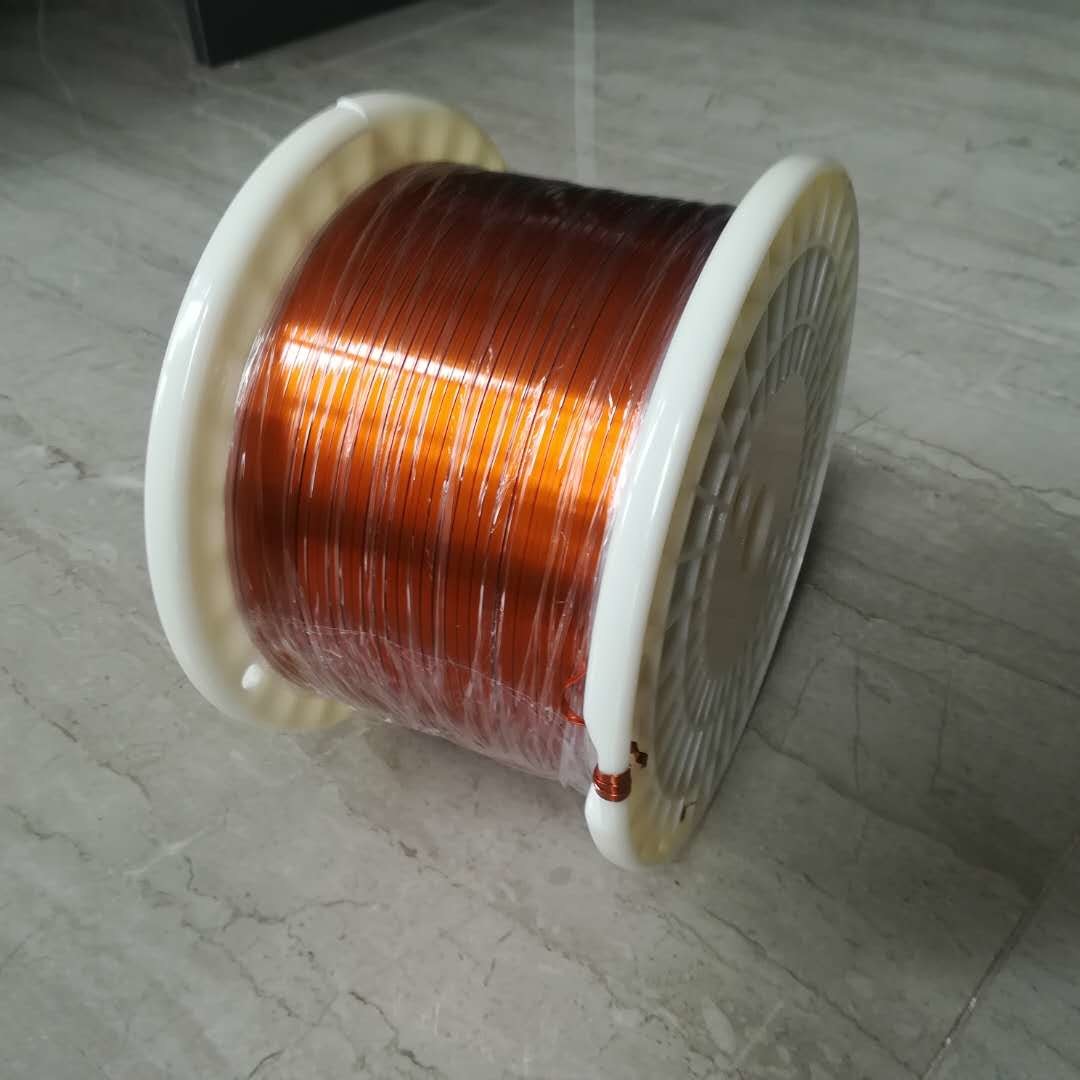

Solderable 2.4mm Rectangular Wire Enameled Flat Copper Wire For Motor

Temel bilgi

Menşe yeri:	Çin
Marka adı:	RVYUAN
Sertifika:	IEC/NEMA/JIS/RoHS/ISO
Model numarası:	UEWH

Min sipariş miktarı:	10kg
Fiyat:	negotiable
Ambalaj bilgileri:	karton ile makara
Teslim süresi:	7 Gün
Ödeme koşulları:	T/T, Paypal
Yetenek temini:	Talebinizi karşılayın

En iyi fiyat Şimdi başvurun

Detay Bilgi

Shape:	Rectangular	Width of conductor:	2.4mm
Unilateral Insulation Layer Thickness (Width):	0.025mm	Thickness of conductor:	0.5mm
Applications:	Solderable 2.4mm Rectangular Wire Enameled Flat Copper Wire For Motor	Thermal Grade:	220
Key word:	Solderable 2.4mm Rectangular Wire Enameled Flat Copper Wire For Motor
Vurgulamak:	Flat Copper Wire Rectangular , 2.4mm Solderable Copper Wire , Motor Solderable Copper Wire

Ürün Açıklaması

Solderable 2.4mm Rectangular Wire Enameled Flat Copper Wire For Motor

If you are looking for reliable, high-performance solutions for motor and transformer winding, our custom enameled rectangular copper wires are the ideal choice. We are committed to providing high quality and customized services, and are committed to supporting your projects with the best quality enameled rectangular copper wires on the market.

Item		Conductor dimension		Unilateral insulation thickness		Overall dimension		Dielectric breakdown voltage	Conductor resistance
		T	W	T	W	T	W	Dielectric breakdown voltage	Conductor resistance
Unit		mm	mm	mm	mm	mm	mm	kv	Ω/km 20℃
SPEC	AVE	0.500	2.400	0.025	/	/	/
	Max	0.509	2.460	0.040	0.550	0.0550	2.500		16.090
	Min	0.491	2.340	0.010				0.700
No. 1		0.501	2.405	0.039	0.544	0.544	2.483	4.880	14.437
No. 2		0.500	2.406	0.039	0.545	0.545	2.485	4.331
No. 3		0.502	2.407	0.039	0.543	0.543	2.484	3.660
No. 4								4.515
No. 5								4.600
No. 6								4.770
No. 7								4.440
No. 8								4.250
No. 9								3.990
No. 10								3.750
Avg		0.501	2.406	0.022	0.039	0.544	2.484	4.319
No.of reading		3	3	3	3	3	3	10
Min. reading		0.500	2.405	0.021	0.022	0.543	2.483	3.660
Max. reading		0.502	2.407	0.023	0.039	0.545	2.485	4.880
Range		0.002	0.002	0.002	0.001	0.002	0.002	1.220
Result		OK	OK	OK	OK	OK	OK	OK	OK

Solderable 2.4mm Rectangular Wire Enameled Flat Copper Wire For Motor

Flat Copper Wire Rectangular

2.4mm Solderable Copper Wire

Motor Solderable Copper Wire
