Class 155 ETFE insulated Copper Litz Wire 0.24mmx7 Strands TIW Stranded Wire

Temel bilgi
Menşe yeri: ÇİN
Marka adı: RVYUAN
Sertifika: UL/ISO9001/ISO14001/RoHS/Reach
Model numarası: 0,24 mm
Min sipariş miktarı: 1000 metre
Fiyat: negotiable
Ambalaj bilgileri: Karton
Teslim süresi: 7 gün
Ödeme koşulları: T/T/PayPal
Yetenek temini: 1 ton/ay
Detay Bilgi
Ürün adı: Transformatör için özel ETFE ekstrüde litz tel 0.24mmx7 iplikçikleri TIW Termal derecelendirme: 155
Tek tel çapı: 0,24 mm İletken malzeme: Bakır
Strands sayısı: 7 Yalıtım: ETFE
Vurgulamak:

ETFE insulated copper litz wire

,

0.24mm 7-strand litz wire

,

TIW stranded copper wire


Ürün Açıklaması

Class 155 ETFE insulated Copper Litz Wire 0.24mmx7 Strands TIW Stranded Wire
ETFE insulation offers numerous advantages, including exceptional toughness, high strength, and superior electrical properties. Its ability to withstand extreme temperatures (up to 155°C) ensures the wires operate effectively in a variety of harsh environments. ETFE is also renowned for its excellent resistance to chemicals and UV radiation, further enhancing its durability and longevity.
Characteristics Test Standard Test result
Min. insulation thickness Mm(min)0.11 0.120 0.127 0.120
Pitch 12±2 ok ok ok
Single wire Diameter 0.24±0.003MM 0.239 0.240 0.240
Overall dimension / 1.03 1.05 1.05
Conductor Resistance Max. 59.18Ω/KM 56.04 56.12 56.10
Breakdown voltage Min. 6KV(min) 15.2 14.4 14.8
Solder ability 400℃ 3Secs OK OK OK
Conclusion Qualified

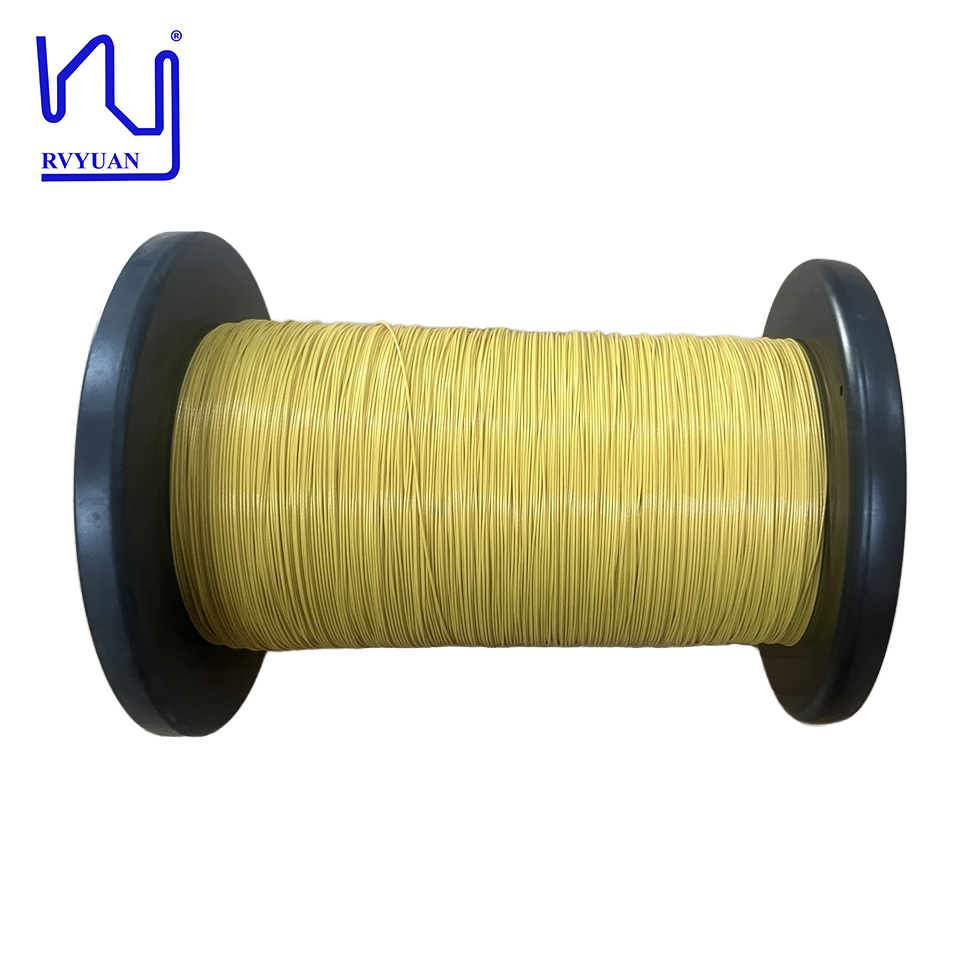

Class 155 ETFE insulated Copper Litz Wire 0.24mmx7 Strands TIW Stranded Wire 0
We have a professional team to provide technical support. Custom specifications available upon request.
