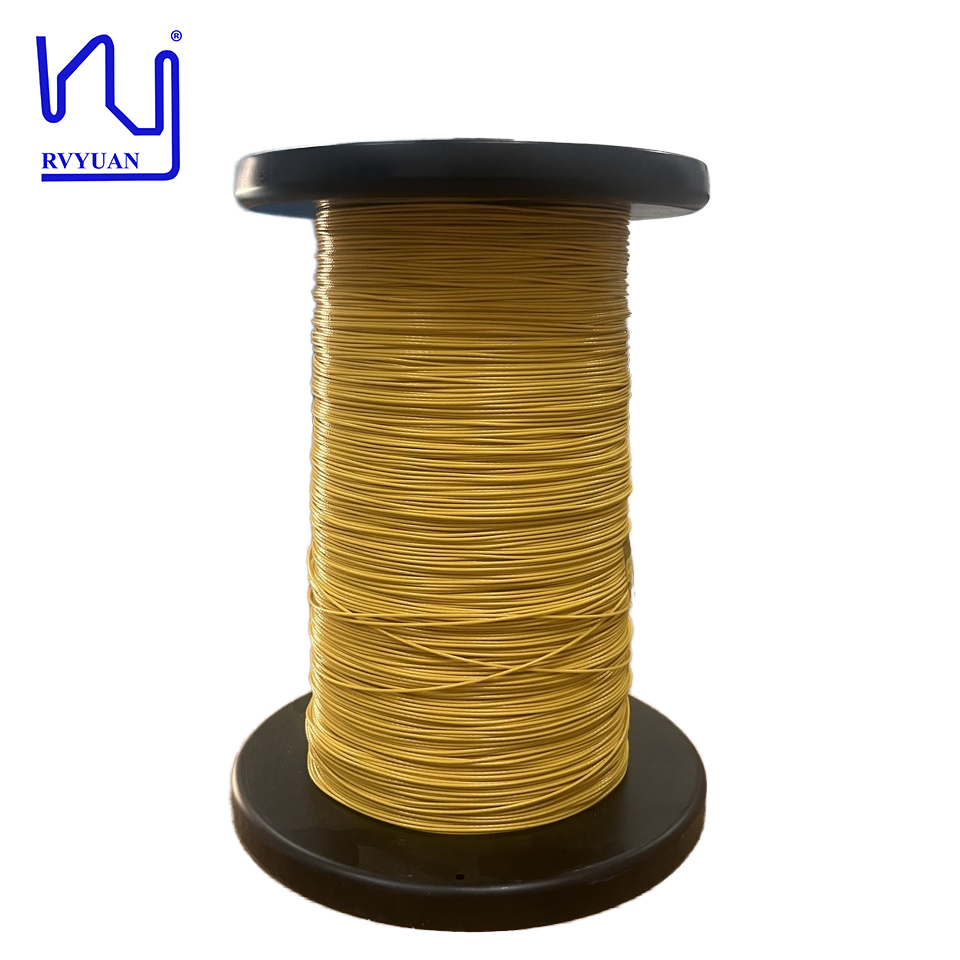

FTIW-F Class 155 0.27mmx7 Extruded ETFE Insulation Litz Wire For High Frequency Transformer

FTIW-F Class 155 0.27mmx7 Extruded ETFE Insulation Litz Wire For High Frequency Transformer
FTIW-F Class 155 0.27mmx7 Extruded ETFE Insulation Litz Wire For High Frequency Transformer
FTIW-F Class 155 0.27mmx7 Extruded ETFE Insulation Litz Wire For High Frequency Transformer
Temel bilgi
Menşe yeri: ÇİN
Marka adı: RVYUAN
Sertifika: UL/ISO9001/ISO14001/RoHS/Reach
Model numarası: 0,27 mm
Min sipariş miktarı: 1000 metre
Fiyat: negotiable
Ambalaj bilgileri: Karton
Teslim süresi: 7 gün
Ödeme koşulları: T/T/PayPal
Yetenek temini: 1 ton/ay
En iyi fiyat Şimdi başvurun
Detay Bilgi
Ürün adı: FTIW-F Sınıfı 155 0.27mmx7 Ekstrüde ETFE Yalıtım Litz Teli Yüksek Frekanslı Transformatör Termal derecelendirme: 155
Tek tel çapı: 0,27 mm İletken malzeme: Bakır
Strands sayısı: 7 Yalıtım: ETFE
Vurgulamak:

ETFE insulated Litz wire

,

high frequency transformer wire

,

0.27mmx7 extruded Litz wire

Ürün Açıklaması

FTIW-F Class 155 0.27mmx7 Extruded ETFE Insulation Litz Wire For High Frequency Transformer
ETFE insulation Litz wire is a high-performance cable featuring a bundle of individually insulated strands twisted together and coated with an extruded layer of Ethylene Tetrafluoroethylene (ETFE) insulation. This combination offers superior performance in demanding applications by minimizing skin-effect losses in high-frequency environments, enhanced electrical properties for high-voltage use, and excellent thermal, mechanical, and chemical resistance due to the strong ETFE fluoropolymer.
Technical Specifications
Characteristics Test Standard Test result
Outer diameter of single wire 0.295mm 0.288 0.287 0.287
Min. insulation thickness /Mm(min) 0.019 0.018 0.019
Pitch S12±2 ok ok ok
Single wire Diameter 0.27±0.004MM 0.269 0.269 0.268
Overall dimension 1.06-1.2mm(Max) 1.078 1.088 1.085
Conductor Resistance Max. 45.23Ω/KM(max) 44.82 44.73 44.81
Breakdown voltage Min. 6KV(min) 15 14.5 14.9
Solder ability 450℃ 3Secs OK OK OK
Conclusion Qualified
FTIW-F Class 155 0.27mmx7 Extruded ETFE Insulation Litz Wire For High Frequency Transformer 0
We have a professional team to provide technical support. Custom specifications available upon request.
