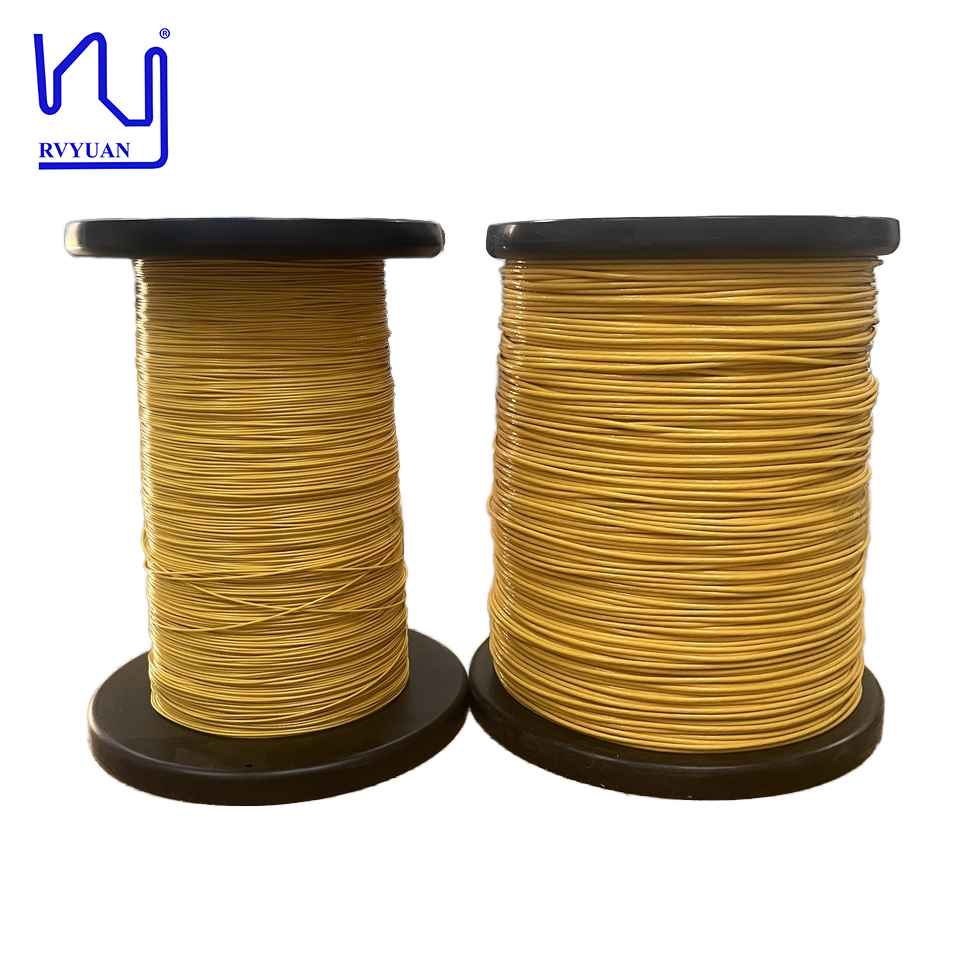

Custom Class 155 7 Strands Extruded ETFE Insulation Copper Litz Wire

Temel bilgi

Menşe yeri:	ÇİN
Marka adı:	RVYUAN
Sertifika:	UL/ISO9001/ISO14001/RoHS/Reach
Model numarası:	0,27 mm

Min sipariş miktarı:	1000 metre
Fiyat:	negotiable
Ambalaj bilgileri:	Karton
Teslim süresi:	7 gün
Ödeme koşulları:	T/T/PayPal
Yetenek temini:	1 ton/ay

En iyi fiyat Şimdi başvurun

Detay Bilgi

Ürün adı:	Özel Sınıf 155 7 Strands Ekstrüde etfe yalıtım bakır litz tel	Termal derecelendirme:	155
Tek tel çapı:	0,27 mm	İletken malzeme:	Bakır
Strands sayısı:	7	Yalıtım:	ETFE
Vurgulamak:	Custom Class 155 Litz Wire , 7 Strands ETFE Insulation Wire , Extruded Copper Litz Wire

Ürün Açıklaması

Custom Class 155 7 Strands Extruded ETFE Insulation Copper Litz Wire

Litz Wire:

A cable composed of multiple strands of insulated wire, twisted or braided together in a specific configuration to reduce AC resistance, particularly at high frequencies.

ETFE Insulation:

Ethylene Tetrafluoroethylene, a fluoropolymer known for its high dielectric strength, excellent thermal stability, resistance to chemicals and UV radiation, and low friction properties.

Characteristics	Test Standard	Test result
Outer diameter of single wire	0.295mm	0.288 \| 0.287 \| 0.287
Min. insulation thickness	/Mm(min)	0.019 \| 0.018 \| 0.019
Pitch	S12±2	ok \| ok \| ok
Single wire Diameter	0.27±0.004MM	0.269 \| 0.269 \| 0.268
Overall dimension	1.06-1.2mm(Max)	1.078 \| 1.088 \| 1.085
Conductor Resistance	Max. 45.23Ω/KM(max)	44.82 \| 44.73 \| 44.81
Breakdown voltage	Min. 6KV(min)	15 \| 14.5 \| 14.9
Solder ability	450℃ 3Secs	OK \| OK \| OK
Conclusion	Qualified

We have a professional team to provide technical support. Custom specifications available upon request.
