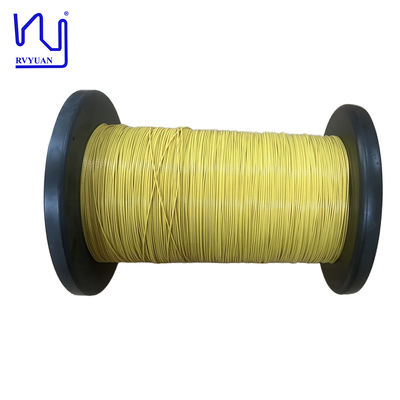

ETFE Insulation 0.21mm 0.24mm 0.27mm TIW Insulated Copper Litz Wire

Temel bilgi

Menşe yeri:	ÇİN
Marka adı:	RVYUAN
Sertifika:	UL/ISO9001/ISO14001/RoHS/Reach
Model numarası:	0,27 mm

Min sipariş miktarı:	1000 metre
Fiyat:	negotiable
Ambalaj bilgileri:	Karton
Teslim süresi:	7 gün
Ödeme koşulları:	T/T/PayPal
Yetenek temini:	1 ton/ay

En iyi fiyat Şimdi başvurun

Detay Bilgi

Ürün adı:	ETFE Yalıtım 0.21mm 0.24mm 0.27mm Tiw Yalıtımlı Bakır Litz Tel	Termal derecelendirme:	155
Tek tel çapı:	0,27 mm	İletken malzeme:	Bakır
Strands sayısı:	7	Yalıtım:	ETFE
Vurgulamak:	ETFE insulated copper litz wire , TIW insulated litz wire , 0.27mm copper litz wire

Ürün Açıklaması

ETFE Insulation 0.21mm 0.24mm 0.27mm TIW Insulated Copper Litz Wire

Construction

Individual copper strands are insulated, often with a lacquer coating.
These strands are then twisted or bundled together to form the Litz structure.
An extruded, continuous layer of ETFE is applied to the outside of the twisted bundle for protection and enhanced insulation.

Specifications

Characteristics	Test Standard	Test result
Outer diameter of single wire	0.295mm	0.288 \| 0.287 \| 0.287
Min. insulation thickness	/Mm(min)	0.019 \| 0.018 \| 0.019
Pitch	S12±2	ok \| ok \| ok
Single wire Diameter	0.27±0.004MM	0.269 \| 0.269 \| 0.268
Overall dimension	1.06-1.2mm(Max)	1.078 \| 1.088 \| 1.085
Conductor Resistance	Max. 45.23Ω/KM(max)	44.82 \| 44.73 \| 44.81
Breakdown voltage	Min. 6KV(min)	15 \| 14.5 \| 14.9
Solder ability	450℃ 3Secs	OK \| OK \| OK
Conclusion	Qualified

We have a professional team to provide technical support. Custom specifications available upon request.
