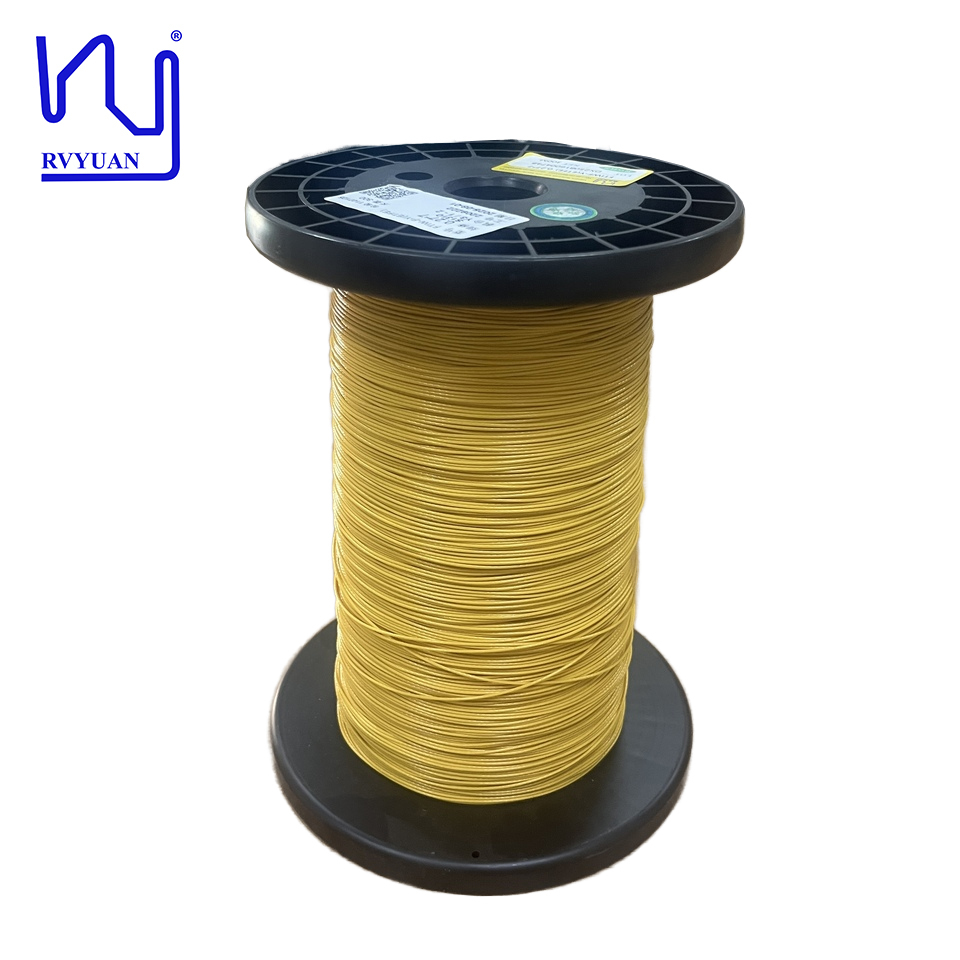

Custom FTIW 0.27mm*7 155°C Polytetrafluoroethylene Membrane ETFE Teflon Strand Litz Wire

Temel bilgi

Menşe yeri:	ÇİN
Marka adı:	RVYUAN
Sertifika:	UL/ISO9001/ISO14001/RoHS/Reach
Model numarası:	0,27 mm

Min sipariş miktarı:	1000 metre
Fiyat:	negotiable
Ambalaj bilgileri:	Karton
Teslim süresi:	7 gün
Ödeme koşulları:	T/T/PayPal
Yetenek temini:	1 ton/ay

En iyi fiyat Şimdi başvurun

Detay Bilgi

Ürün adı:	Özel FTIW 0.27mm*7 155 ° C Politetrafloroetilen Membran Etfon Teflon Strand Litz Tel	Termal derecelendirme:	155
Tek tel çapı:	0,27 mm	İletken malzeme:	Bakır
Strands sayısı:	7	Yalıtım:	ETFE
Vurgulamak:	ETFE Teflon Litz wire , Polytetrafluoroethylene membrane wire , Custom FTIW Litz wire

Ürün Açıklaması

Custom FTIW 0.27mm*7 155°C Polytetrafluoroethylene Membrane ETFE Teflon Strand Litz Wire

Key Advantages

Reduced AC Resistance: The twisted, multi-strand construction minimizes skin effect and proximity effect, leading to improved efficiency at high frequencies.
Enhanced Insulation: ETFE provides excellent electrical insulation and high breakdown voltage, suitable for high-voltage applications.
Superior Durability: The fluoropolymer insulation offers outstanding resistance to heat, chemicals, moisture, and UV radiation, ensuring longevity in harsh environments.
Flexibility: The multiple strands and ETFE's mechanical properties contribute to increased flexibility.

Technical Specifications

Characteristics	Test Standard	Test result
Outer diameter of single wire	0.295mm	0.288 \| 0.287 \| 0.287
Min. insulation thickness	/Mm(min)	0.019 \| 0.018 \| 0.019
Pitch	S12±2	ok \| ok \| ok
Single wire Diameter	0.27±0.004MM	0.269 \| 0.269 \| 0.268
Overall dimension	1.06-1.2mm(Max)	1.078 \| 1.088 \| 1.085
Conductor Resistance	Max. 45.23Ω/KM(max)	44.82 \| 44.73 \| 44.81
Breakdown voltage	Min. 6KV(min)	15 \| 14.5 \| 14.9
Solder ability	450℃ 3Secs	OK \| OK \| OK
Conclusion	Qualified

We have a professional team to provide technical support. Custom specifications available upon request.
