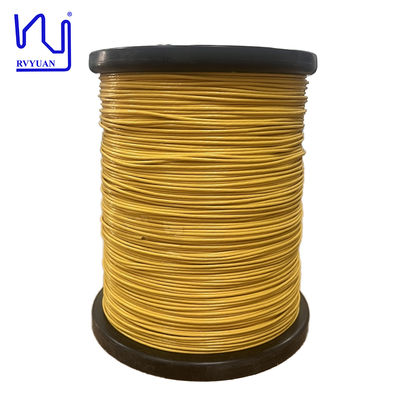

Extruded ETFE Litz Wire 0.1mm*250 Class 155 Copper Conductor

Temel bilgi

Menşe yeri:	ÇİN
Marka adı:	RVYUAN
Sertifika:	UL/ISO9001/ISO14001/RoHS/Reach
Model numarası:	0.1 mm

Min sipariş miktarı:	1000 metre
Fiyat:	negotiable
Ambalaj bilgileri:	Karton
Teslim süresi:	7 gün
Ödeme koşulları:	T/T/PayPal
Yetenek temini:	1 ton/ay

En iyi fiyat Şimdi başvurun

Detay Bilgi

Ürün adı:	Ekstrüde etfe litz tel 0.1mm*250 Sınıf 155 Bakır İletken	Termal derecelendirme:	155
Tek tel çapı:	0.1 mm	İletken malzeme:	Bakır
Strands sayısı:	250	Yalıtım:	ETFE
Vurgulamak:	ETFE Litz Wire 0.1mm , Class 155 Copper Conductor Wire , Triple Insulated ETFE Wire

Ürün Açıklaması

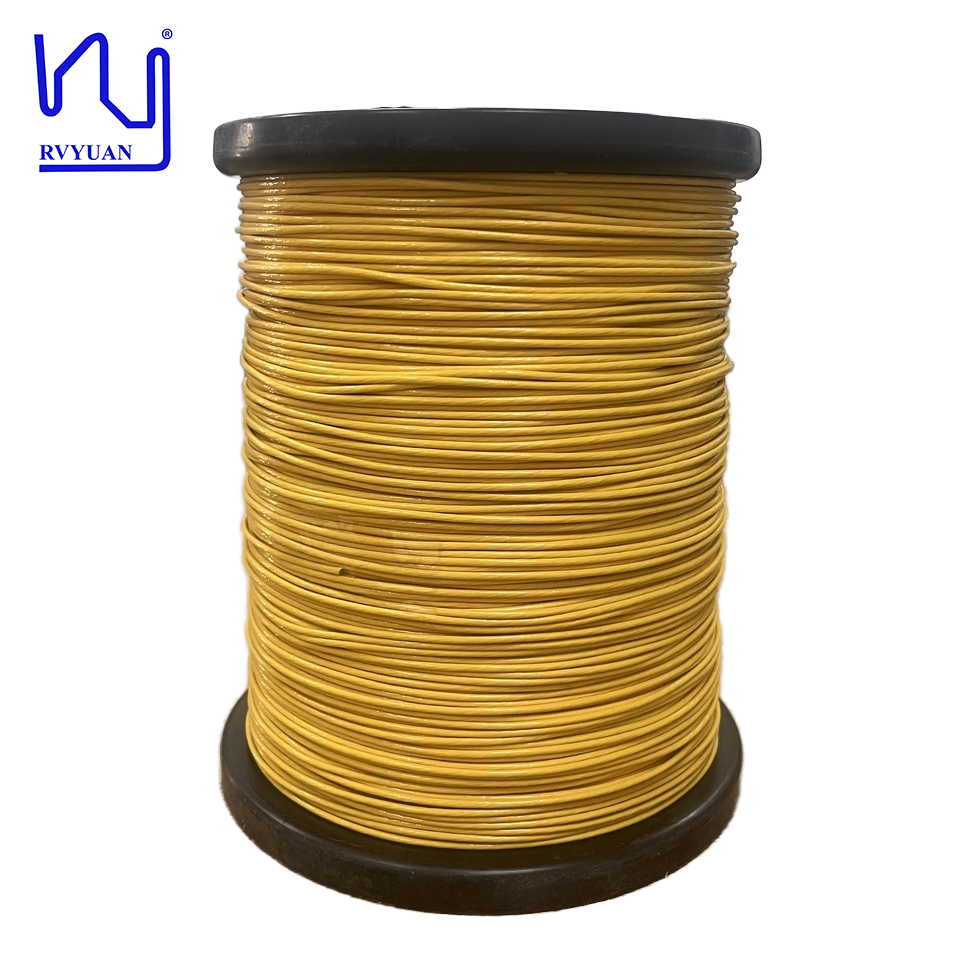

Extruded ETFE Litz Wire 0.1mm*250 Class 155 Copper Conductor

The superior bending properties compared to other fluoropolymers. This property enables tighter bends without compromising the integrity of the wire, making it ideal for high-frequency interconnects. ETFE also offers excellent water and chemical resistance, further enhancing the wire's durability and longevity in harsh environments.

Technical Specifications

Characteristics	Technical Requests	Sample 1	Sample 2	Sample 3	Conclusion
Appearance	Smooth & Clean	OK	OK	OK	OK
Diameter of single wire	0.10±0.003mm	0.100	0.100	0.099	OK
Thickness of Enamel	≥ 0.004mm	0.006	0.007	0.008	OK
OD of single wire	0.105-0.109mm	0.106	0.107	0.107	OK
Twist Pitch	S28±2	OK	OK	OK	OK
Insulation Thickness	Min.0.1mm	0.12	0.12	0.12	OK
OD of Litz Wire	Max. 2.2mm	2.16	2.16	2.12	OK
DC Resistance	Max.9.81 Ω/km	9.1	9.06	9.15	OK
Elongation	≥ 13 %	23.1	21.9	22.4	OK
Breakdown Voltage	≥ 5K V	8.72	9.12	8.76	OK
Pin Hole	0 hole/5m	0	0	0	OK

We have a professional team to provide technical support. Custom specifications available upon request.
