Name: Custom PEEK wire 1.4mmx2.0mm Enameled Rectangular Copper Wire
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: Göz atmak
Price: 24.06 USD
Availability: InStock

Detay Bilgi

İletken Tipi:	sağlam	Malzeme:	Bakır
Şekil:	Dikdörtgen	Genişlik:	2.0mm
Tip:	Yalıtılmış	Sertifikalar:	ROHS/UL/SGS/ISO9001:2008
Ürün adı:	Özel PEEK tel 1.4mmx2.0mm Emaye Dikdörtgen Bakır Tel	Kalınlık:	1.4 mm
Vurgulamak:	Custom PEEK enameled rectangular wire , 1.4mmx2.0mm rectangular copper wire , Enameled PEEK copper wire with warranty

Ürün Açıklaması

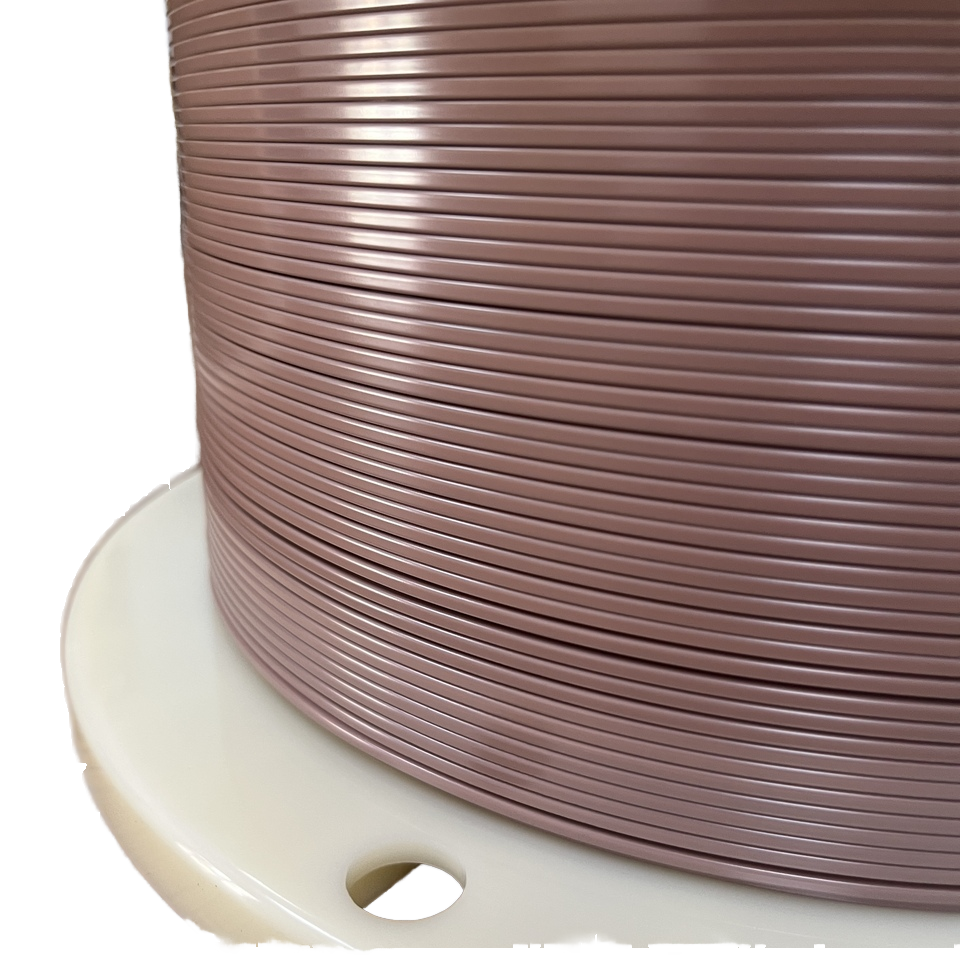

Custom PEEK wire 1.4mmx2.0mm Enameled Rectangular Copper Wire

Custom PEEK wire 1.4mmx2.0mm Enameled Rectangular Copper Wire

Application

Aerospace: PEEK wire is used in the aerospace field for its light weight, high temperature resistance, and ability to withstand extreme conditions. It is used to manufacture satellite cables and aircraft engine windings.
Automotive Industry: In automotive applications, PEEK wire is used for motor windings, particularly in high-voltage environments, where it helps reduce corona discharge and extend motor life. It is also used as cable ties for securing wiring and in the production of wear-resistant components.
Oil and Gas: The wire's resistance to high and low temperatures, as well as chemical corrosion and radiation, makes it an ideal choice for motor windings in downhole equipment and submersible pumps.
Electronics and Semiconductors: In semiconductor manufacturing, PEEK wire is used to support and transport glass substrates, as well as in the production of electronic components and equipment.

Specifications

Ref. -	Item	Specification	Measurement data	Measure equipment
No.	W607010 2A250904	W607010 2B250904
1	Copper width	1.980-2.020mm	2.004 \| 2.005	Mircometer
2	Copper thickness	1.380-1.420mm	1.400 \| 1.399	Mircometer
3	Overall width	2.300-2.360 mm	2.324 \| 2.321	Mircometer
4	Overall thickness	1.700-1.760 mm	1.732 \| 1.731	Mircometer
5	Copper radius	0.350-0.450mm	0.375 \| 0.408	Microscope
6	Copper radius		0.385 \| 0.412	Microscope
7	Copper radius		0.399 \| 0.411	Microscope
8	Copper radius		0.404 \| 0.407	Microscope
9	Insulation layer thickness	0.145-0.185mm	0.170 \| 0.159	Microscope
10	Insulation layer thickness		0.162 \| 0.155	Microscope
11	Insulation layer thickness		0.155 \| 0.161	Microscope
12	Insulation layer thickness		0.167 \| 0.165	Microscope
13	Insulation layer thickness		0.152 \| 0.155	Microscope
14	Insulation layer thickness		0.161 \| 0.159	Microscope
15	Insulation layer thickness of radius	0.145-0.185mm	0.156 \| 0.158	Microscope
16	Insulation layer thickness of radius		0.159 \| 0.155	Microscope
17	Insulation layer thickness of radius		0.154 \| 0.159	Microscope
18	Insulation layer thickness of radius		0.160 \| 0.165	Microscope
19	Copper	T1	OK	Material certificate
20	Coating/Temperature grade	240℃	OK	Material certificate
21	Elongation	≥40%	46 \| 48	Tensile tester
22	Spring back angle	/	5.186 \| 5.098	Auto spring back test
23	Flexibility	After winding with Ø 2.0mm and Ø3.0mm diameter round rods, there should be no cracking in the insulation layer.	OK \| OK	Visual
24	Adhesion	≤3.00mm	0.394 \| 0.671	Tensile tester&Microscope
25	20℃ Conductor resistance	≤6.673 Ω/km	6.350 \| 6.360	Conductor resistance tester
26	BDV	≥12000 V	22010 \| 21170	Auto voltage tester
27	PDIV	≥1300 RMS (25℃,50V/S,50Hz,100Pc)	1425 \| 1429	PDIV tester
28	Heat shock	After baking at 240℃ for 30 minutes, the insulation layer should have no cracks.	OK	Oven
29	Defect inspection	High voltage Pinhole: DC 3000V, 16uA Parricle: Height＞0.100mm need to be marked Impurity:Length or width ≥ 0.4mm or area ≥0.16mm² need to be marked	0 \| 0 0 \| 0 0 \| 2	On-line inspection system
30	Spool&Weight	Sample phase:P-30,25±15kg Mass productin:PC-630B,160± 60kg	P-30 \| P-30	Visual

Etiket:

Menşe yeri:	ÇİN
Marka adı:	Ruiyuan
Sertifika:	UL/ISO9001/ISO14001/RoHS/Reach
Model numarası:	Göz atmak

Min sipariş miktarı:	50kg
Fiyat:	negotiable
Ambalaj bilgileri:	Karton
Teslim süresi:	7 gün
Ödeme koşulları:	T/T
Yetenek temini:	100kg/hafta
