Ana sayfa > Ürünler> Ustc Litz Tel> 0.03mm 0.05mm 0.08mm 0.1mm 0.2mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire

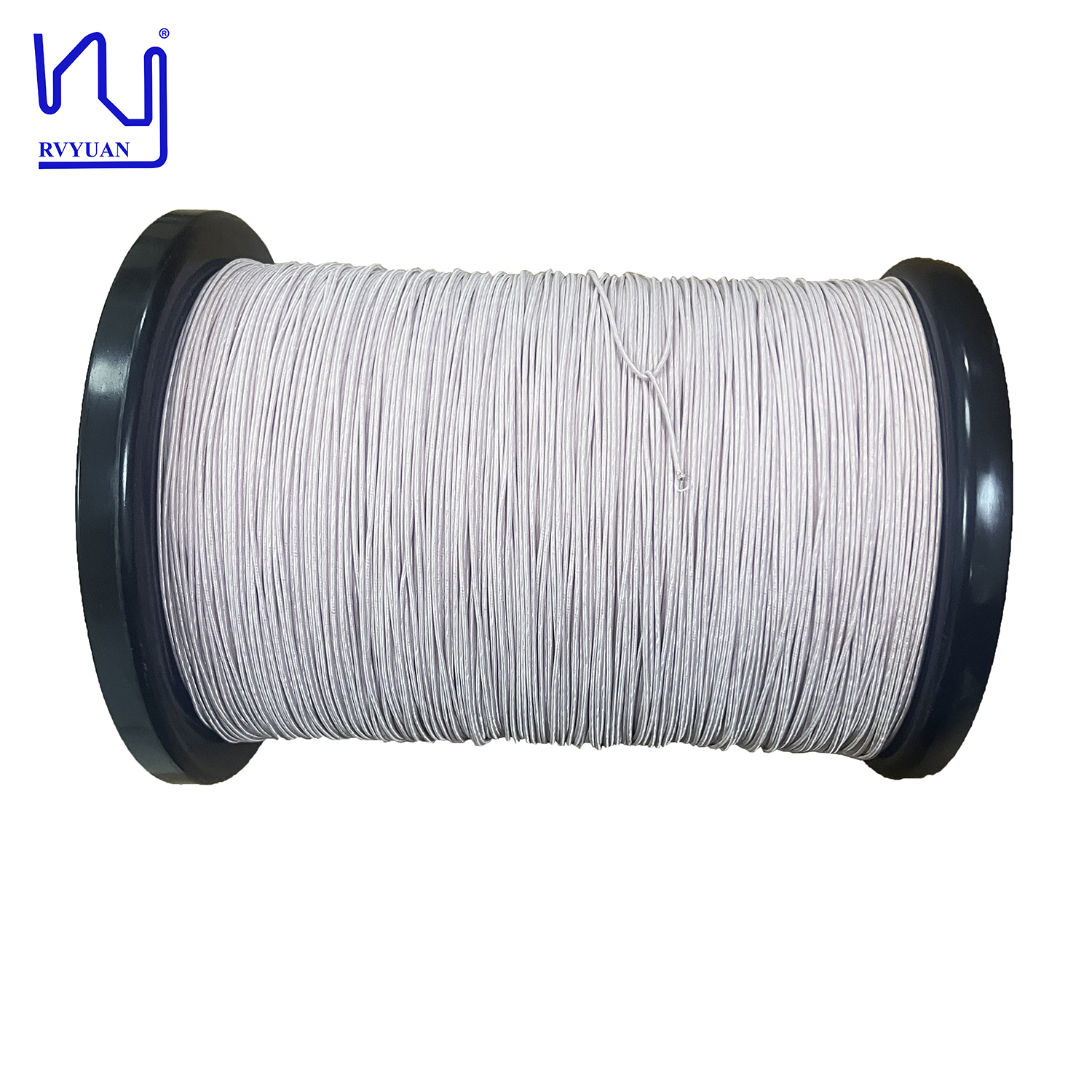

0.03mm 0.05mm 0.08mm 0.1mm 0.2mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire

0.03mm 0.05mm 0.08mm 0.1mm 0.2mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire
0.03mm 0.05mm 0.08mm 0.1mm 0.2mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire
0.03mm 0.05mm 0.08mm 0.1mm 0.2mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire
Temel bilgi
Menşe yeri: ÇİN
Marka adı: RVYUAN
Sertifika: ISO9001/ISO14001 /UL/SGS
Model numarası: USTC
Min sipariş miktarı: 10kg
Fiyat: negotiable
Ambalaj bilgileri: Karton ile makara
Teslim süresi: 2-15 çalışma günü
Ödeme koşulları: T/ T/ PayPal
Yetenek temini: Talebinizi tatmin edin
En iyi fiyat Şimdi başvurun
Detay Bilgi
Çap: 0.1 mm Sıcaklık: 155
Sertifika: IEC/NEMA/JIS/RoHS/ISO Şef: Bakır
İplikler: 100 Arıza voltajı: Min.1100
Kapak malzemesi: naylon Ürün adı: 0.03mm 0.05mm 0.08mm 0.1mm 0.2mm Yüksek Frekans Tel Emaye Mıknatıs Tel İpek Kaplı Bakır Litz Tel
Anahtar kelime: 0.03mm 0.05mm 0.08mm 0.1mm 0.2mm Yüksek Frekans Tel Emaye Mıknatıs Tel İpek Kaplı Bakır Litz Tel
Vurgulamak:

enameled magnet wire silk covered

,

high frequency litz wire

,

copper litz wire with warranty

Ürün Açıklaması

0.03mm 0.05mm 0.08mm 0.1mm 0.2mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire
We can produce polyurethane-enameled copper wire with single strand diameters ranging from 0.03 mm to 0.5 mm and can fully customize it to your specific needs. In addition to this configuration, we can also produce single-strand conductors with up to 12,700 strands, depending on the appropriate strand size.
If you have specific design and customization requirements, please let us know and our technical team will be happy to assist you. The minimum order quantity for this type of conductor is typically 20 kg, but we also offer custom orders in smaller quantities to accommodate various project sizes.
Product Specifications
Item Standard Test value
Single wire outer diameter(mm) 0.107-0.125 0.110 | 0.114
Conductor diameter(mm) 0.100±0.003 0.098 | 0.10
Overall dimension(mm) Max.1.43 1.3 | 1.38
Pitch(mm) 27±5 √ | √
Resistance(Ω/m at20℃) Max.0.02381 0.0214 | 0.0215
Pinhole <45 faults/6m 8 | 10
Breakdown voltage >1100V 3300 | 3400
0.03mm 0.05mm 0.08mm 0.1mm 0.2mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire 0
Please send inquiries directly to request more information or quote!
