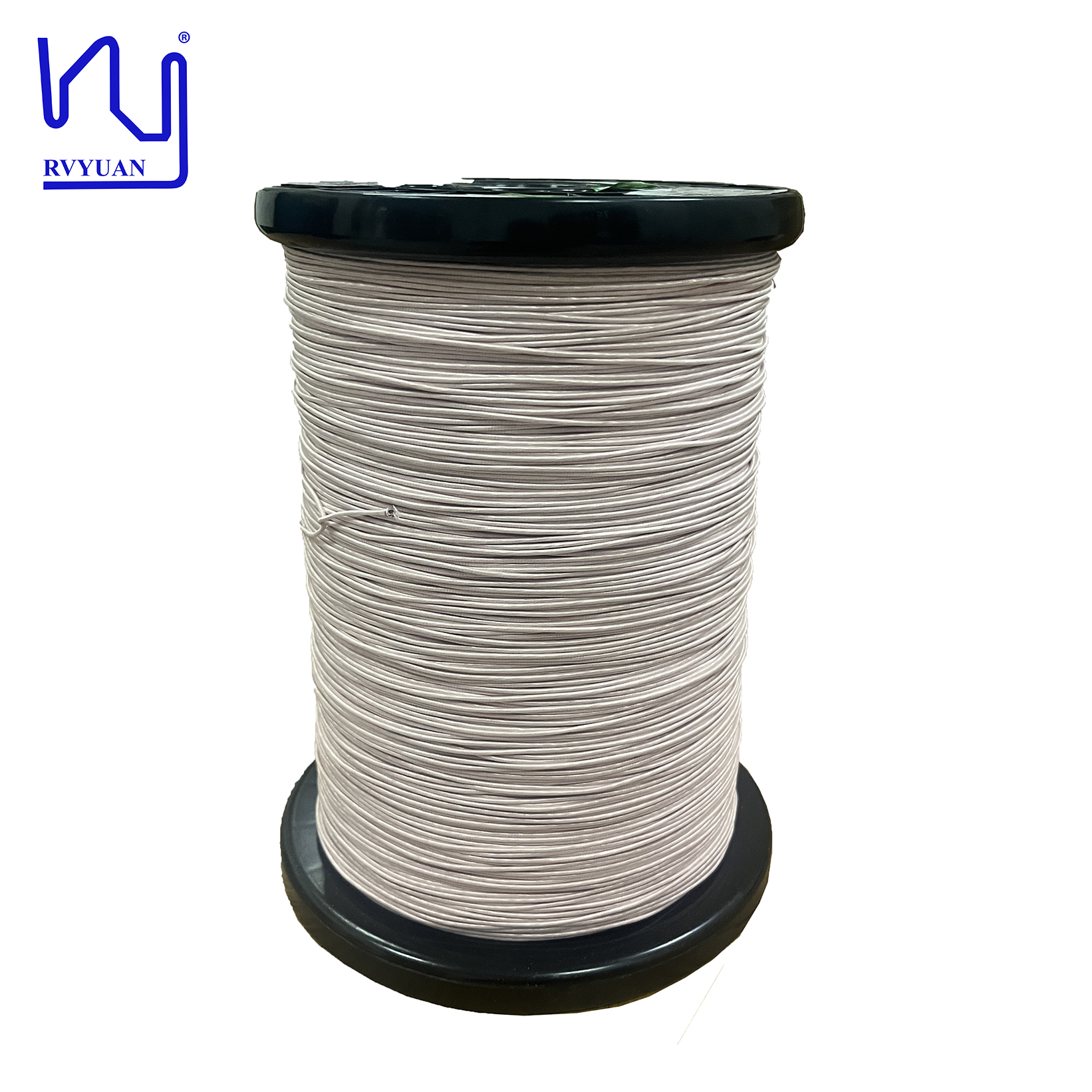

Customized USTC UEW 0.1mm Stranded Silk Covered Litz Wire for Wireless Charging Coils

Customized USTC UEW 0.1mm Stranded Silk Covered Litz Wire for Wireless Charging Coils
Customized USTC UEW 0.1mm Stranded Silk Covered Litz Wire for Wireless Charging Coils
Customized USTC UEW 0.1mm Stranded Silk Covered Litz Wire for Wireless Charging Coils
Temel bilgi
Menşe yeri: ÇİN
Marka adı: RVYUAN
Sertifika: ISO9001/ISO14001 /UL/SGS
Model numarası: USTC
Min sipariş miktarı: 10kg
Fiyat: negotiable
Ambalaj bilgileri: Karton ile makara
Teslim süresi: 2-15 çalışma günü
Ödeme koşulları: T/ T/ PayPal
Yetenek temini: Talebinizi tatmin edin
En iyi fiyat Şimdi başvurun
Detay Bilgi
Çap: 0.1 mm Sıcaklık: 155
Sertifika: IEC/NEMA/JIS/RoHS/ISO Şef: Bakır
İplikler: 100 Arıza voltajı: Min.1100
Kapak malzemesi: naylon Ürün adı: Kablosuz Şarj Bobinleri için özelleştirilmiş USTC UEW 0.1mm Örgülü İpek Kaplı Litz Teli
Anahtar kelime: Kablosuz Şarj Bobinleri için özelleştirilmiş USTC UEW 0.1mm Örgülü İpek Kaplı Litz Teli
Vurgulamak:

0.1mm silk covered Litz wire

,

customized USTC Litz wire for wireless charging

,

stranded silk Litz wire with warranty

Ürün Açıklaması

Customized USTC UEW 0.1mm Stranded Silk Covered Litz Wire for Wireless Charging Coils
Silk-covered Litz wire is used in applications that require high efficiency and low loss, particularly at high frequencies. Common applications include windings for transformers, motors, and high-frequency inductors, as well as in high-power lighting, video, and audio equipment. The silk covering adds insulation and durability while the Litz construction minimizes AC resistance.
Applications
Why It's Used
  • Efficiency: The Litz construction minimizes skin and proximity effects, reducing resistance and energy loss.
  • Insulation: The silk cover provides an extra layer of electrical insulation and mechanical protection.
  • Performance: It improves the "Q" value and overall performance in high-frequency circuits.
Product Specifications
Item Standard Test value
Single wire outer diameter(mm) 0.107-0.125 0.110 | 0.114
Conductor diameter(mm) 0.100±0.003 0.098 | 0.10
Overall dimension(mm) Max.1.43 1.3 | 1.38
Pitch(mm) 27±5 √ | √
Resistance(Ω/m at20℃) Max.0.02381 0.0214 | 0.0215
Pinhole <45 faults/6m 8 | 10
Breakdown voltage >1100V 3300 | 3400
Customized USTC UEW 0.1mm Stranded Silk Covered Litz Wire for Wireless Charging Coils 0
Please send inquiries directly to request more information or quote!
