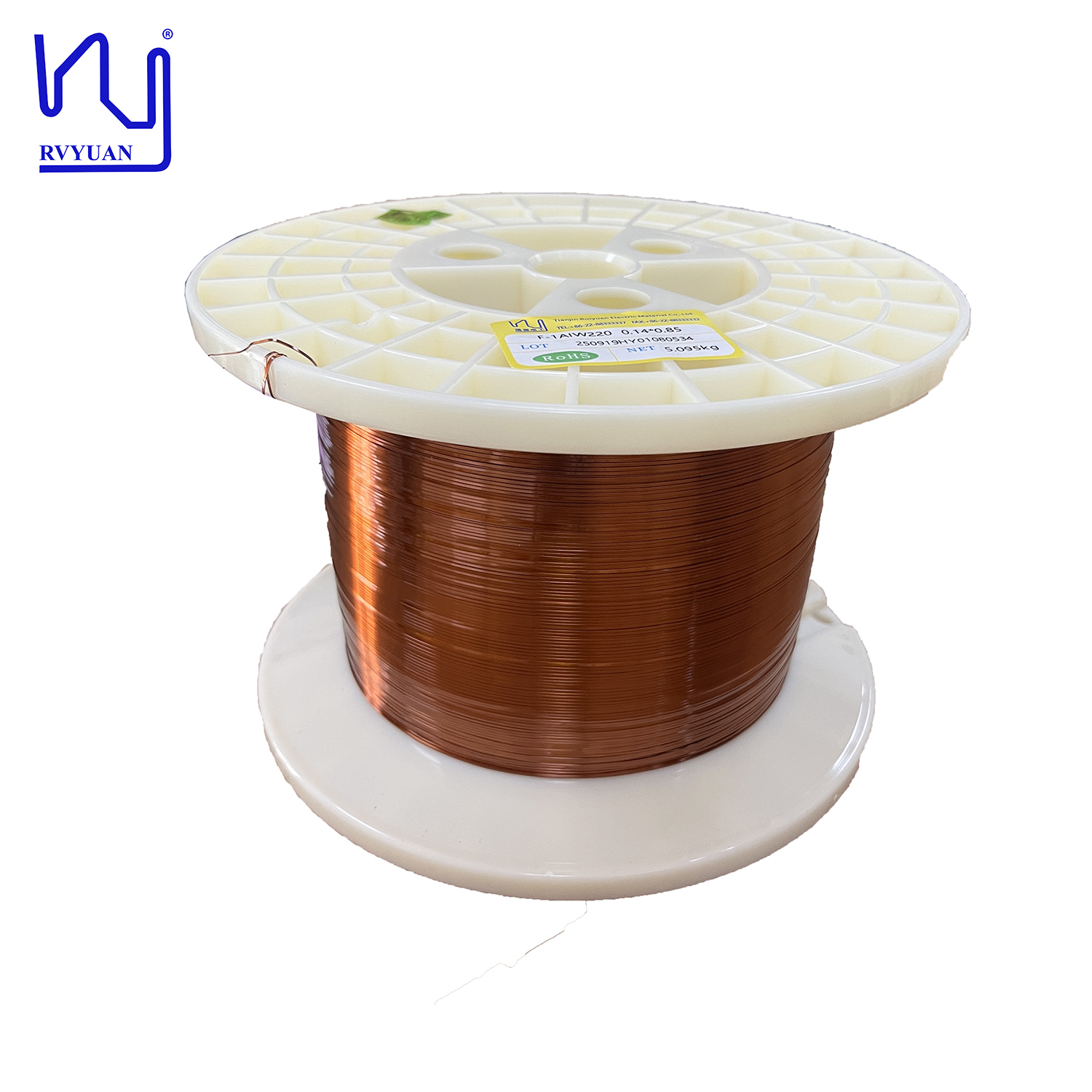

AIW Enameled Flat Copper Wire 2.0mm 3mm 4mm Rectangular Wire

Temel bilgi

Menşe yeri:	ÇİN
Marka adı:	RVYUAN
Sertifika:	IEC/NEMA/JIS/RoHS/ISO
Model numarası:	Sınıf 220

Min sipariş miktarı:	Farklı minimum sipariş miktarına sahip farklı tipler
Fiyat:	negotiable
Ambalaj bilgileri:	Karton ile makara
Teslim süresi:	2-15 çalışma günü
Ödeme koşulları:	T/T
Yetenek temini:	Talebinizi tatmin edin

En iyi fiyat Şimdi başvurun

Detay Bilgi

Şekil:	Dikdörtgen	İletken Boyutu (Genişlik):	2 mm
Tek taraflı yalıtım tabakası kalınlığı (genişliği):	1 mm	Uygulamalar:	motor sargısı
Termal sınıf:	220	Anahtar kelime:	AIW Emaye Düz Bakır Tel 2.0mm 3mm 4mm Dikdörtgen Tel
Vurgulamak:	enameled flat copper wire , rectangular copper wire 4mm , AIW enameled rectangular wire

Ürün Açıklaması

AIW Enameled Flat Copper Wire 2.0mm 3mm 4mm Rectangular Wire

Insulation enamel is Polyamide Imide coating, with the capability to resist 220℃ temperature. We've successfully developed AIW enameled flat copper wire based on market needs of small size and light weight, degree of dependability, fire-resistance, mechanical and chemical characteristics and in consideration of production efficiency and the upgrading of market competitiveness. It not only has all the advantages of EI enameled flat copper wire, but also is with a better performance compared with the latter in temperature-resistance, grinding-resistance, and degree of stickiness.

Technical Specifications

TEST REPORT
Model		SFT-AIW					Date			2024-1-8
Size(mm):		0.100 × 2.000					Lot			/

Item		conductor dimension		Unilateral insulation laer thickness		Overall dimension		Dielectric breakdown voltage	Pinhole	Conductor resistance	Elongation	Apperance	Flexibility	Adherence	Thermal shock
Item		Thickness	Width	Thickness	Width	Thickness	Width	Dielectric breakdown voltage	Pinhole	Conductor resistance	Elongation	Apperance	Flexibility	Adherence	Thermal shock
Unit		mm	mm	mm	mm	mm	mm	kv	Pcs/m	Ω/km 20℃	%	No to be scratched No dirt	No crack	No crack	No crack
SPEC	Mid.	0.100	2.000	0.025	0.025
	Max	0.109	2.060	0.040	0.040	0.150	2.100		3	93.240
	Min	0.091	1.940	0.010	0.010			0.700			30
No. 1		0.104	1.992	0.020	0.013	0.144	2.018	2.680	0	85.634	46	No to be scratched No dirt	Good	Good	Good
No. 2								1.968
No. 3								2.250
No. 4								2.458
No. 5								1.976
Ave		0.104	1.992	0.020	0.013	0.144	2.018	2.266
Number of reading		1	1	1	1	1	1	5
Min. reading		0.104	1.992	0.020	0.013	0.144	2.018	1.968
Max. reading		0.104	1.992	0.020	0.013	0.144	2.018	2.680
Range		0.000	0.000	0.000	0.000	0.000	0.000	0.712
Result		OK	OK	OK	OK	OK	OK	OK	OK	OK	OK	OK	OK	OK	OK
