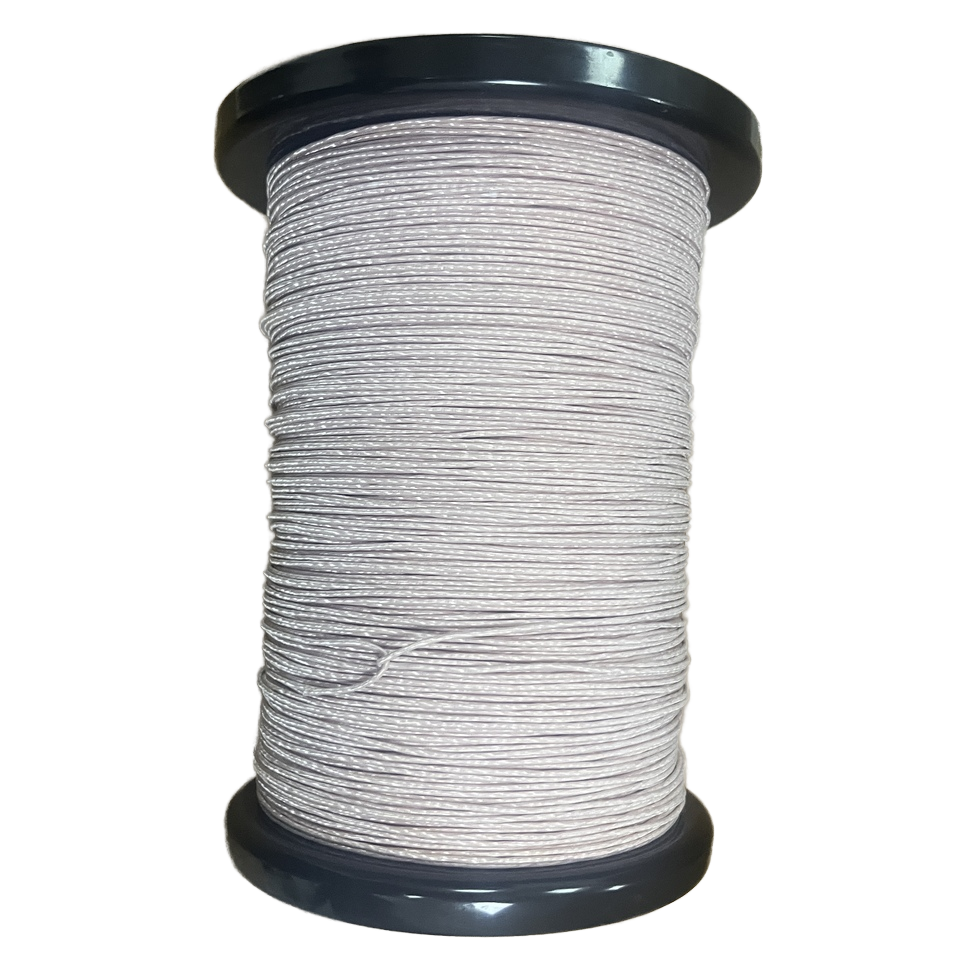

Customizable UEW 0.2mm * 40 Strands Twisted Enameled Copper Silk Covered Litz Wire

Customizable UEW 0.2mm * 40 Strands Twisted Enameled Copper Silk Covered Litz Wire
Customizable UEW 0.2mm * 40 Strands Twisted Enameled Copper Silk Covered Litz Wire
Customizable UEW 0.2mm * 40 Strands Twisted Enameled Copper Silk Covered Litz Wire
Temel bilgi
Menşe yeri: ÇİN
Marka adı: RVYUAN
Sertifika: ISO9001/ISO14001 /UL/SGS
Model numarası: USTC
Min sipariş miktarı: 10kg
Fiyat: negotiable
Ambalaj bilgileri: Karton ile makara
Teslim süresi: 2-15 çalışma günü
Ödeme koşulları: T/ T/ PayPal
Yetenek temini: Talebinizi tatmin edin
En iyi fiyat Şimdi başvurun
Detay Bilgi
Çap: 0.2 mm Sıcaklık: 155
Sertifika: IEC/NEMA/JIS/RoHS/ISO Şef: Bakır
İplikler: 40 Arıza voltajı: Min.1600
Kapak malzemesi: naylon Ürün adı: Özelleştirilebilir UEW 0.2mm * 40 Tel Bükümlü Emaye Bakır İpek Kaplı Litz Teli
Anahtar kelime: Özelleştirilebilir UEW 0.2mm * 40 Tel Bükümlü Emaye Bakır İpek Kaplı Litz Teli
Vurgulamak:

customizable enameled copper litz wire

,

40 strands twisted litz wire

,

0.2mm silk covered litz wire

Ürün Açıklaması

Customizable UEW 0.2mm * 40 Strands Twisted Enameled Copper Silk Covered Litz Wire
This superior conductor features 0.2mm single-strand enameled wire coated with a durable polyurethane layer, ensuring excellent solderability. You can use it with confidence; soldering will be seamless, making it a reliable choice for a wide range of projects. The conductor is composed of 40 strands, combining exceptional flexibility and performance.
Product Specifications
Item Technical requests Test value 1 Test value 2
Single Diameter (mm) 0.216-0.231 0.219 0.223
Conductor diameter (mm) 0.2± 0.003 0.198 0.2
O.D. (mm) Max.1.8 1.57 1.70
Resistance Ω/m (20℃) Max. 0.01443 0.01357 0.01335
Breakdown Voltage V 1600 3800 3600
Pitch mm 33 ±7 √ √
No. of strands 40 √ √
Customizable UEW 0.2mm * 40 Strands Twisted Enameled Copper Silk Covered Litz Wire 0
Please send inquiries directly to request more information or quote!
