2USTC 0.2mm Nylon Covered Litz Wire 150 Strands Copper Wire

Temel bilgi
Menşe yeri: ÇİN
Marka adı: RVYUAN
Sertifika: ISO9001/ISO14001 /UL/SGS
Model numarası: USTC
Min sipariş miktarı: 10kg
Fiyat: negotiable
Ambalaj bilgileri: Karton ile makara
Teslim süresi: 2-15 çalışma günü
Ödeme koşulları: T/ T/ PayPal
Yetenek temini: Talebinizi tatmin edin
Detay Bilgi
Çap: 0.2 mm Sıcaklık: 155
Sertifika: IEC/NEMA/JIS/RoHS/ISO Şef: Bakır
İplikler: 40 Arıza voltajı: Min.1600
Kapak malzemesi: naylon Ürün adı: 2USTC 0.2mm Naylon Kaplı Litz Teli 150 Tel Bakır Tel
Anahtar kelime: 2USTC 0.2mm Naylon Kaplı Litz Teli 150 Tel Bakır Tel
Vurgulamak:

0.2mm nylon litz wire

,

150 strands copper litz wire

,

ustc nylon covered wire


Ürün Açıklaması

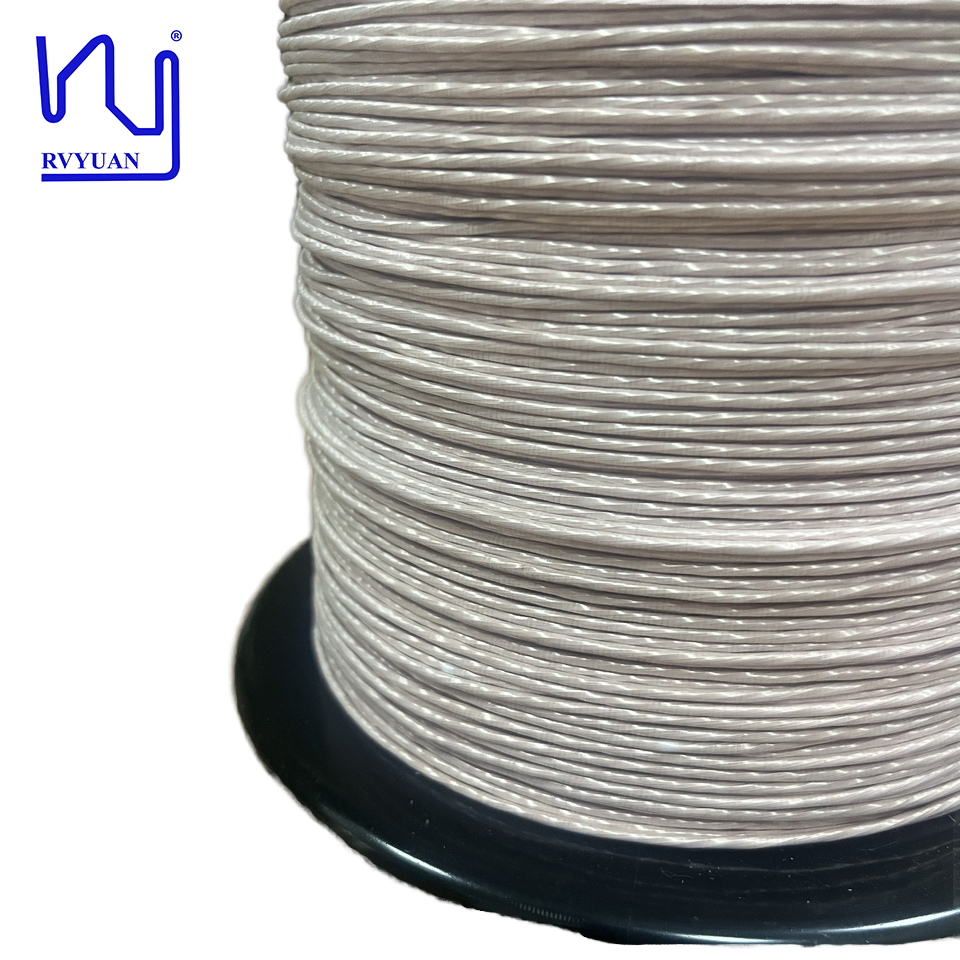

2USTC 0.2mm Nylon Covered Litz Wire 150 Strands Copper Wire

This superior nylon served litz wire features 0.2mm single enameled wire coated with a durable polyurethane, ensuring excellent solderability. You can use it with confidence; soldering will be seamless, making it a reliable choice for a wide range of projects. The litz wire is composed of 40 strands, combining exceptional flexibility and performance.

The outer layer is wrapped in high-quality nylon, which not only enhances durability but also gives it a stylish look. If you prefer other materials, we also offer polyester and silk wrapping options, allowing you to choose the most suitable material according to your needs.

Product Specifications
Item Technical requests Test value 1 Test value 2
Single Diameter (mm) 0.216-0.231 0.219 0.223
Conductor diameter (mm) 0.2± 0.003 0.198 0.2
O.D. (mm) Max.1.8 1.57 1.70
Resistance Ω/m (20℃) Max. 0.01443 0.01357 0.01335
Breakdown Voltage V 1600 3800 3600
Pitch mm 33 ±7
No. of strands 40
2USTC 0.2mm Nylon Covered Litz Wire 150 Strands Copper Wire 0
Please send inquiries directly to request more information or quote!
