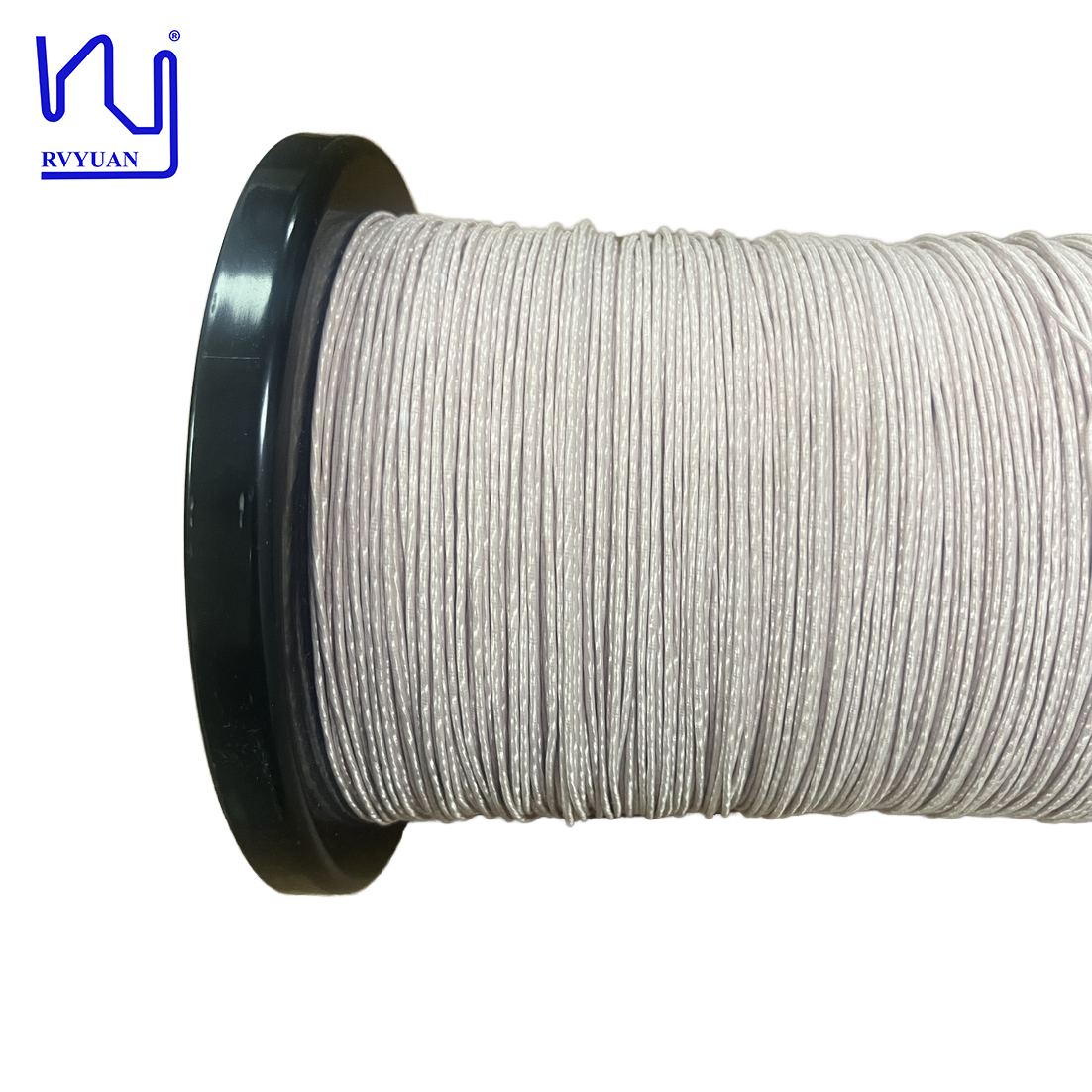

USTC Class 155 0.2mm*40 Insulated Silk Covered Copper Litz Wire 3500V

Temel bilgi
Menşe yeri: ÇİN
Marka adı: RVYUAN
Sertifika: ISO9001/ISO14001 /UL/SGS
Model numarası: USTC
Min sipariş miktarı: 10kg
Fiyat: negotiable
Ambalaj bilgileri: Karton ile makara
Teslim süresi: 2-15 çalışma günü
Ödeme koşulları: T/ T/ PayPal
Yetenek temini: Talebinizi tatmin edin
Detay Bilgi
Çap: 0.2 mm Sıcaklık: 155
Sertifika: IEC/NEMA/JIS/RoHS/ISO Şef: Bakır
İplikler: 40 Arıza voltajı: Min.1600
Kapak malzemesi: naylon Ürün adı: USTC Class 155 0.2mm*40 İzoleli İpek Kaplı Bakır Litz Teli 3500V
Anahtar kelime: USTC Class 155 0.2mm*40 İzoleli İpek Kaplı Bakır Litz Teli 3500V
Vurgulamak:

0.2mm insulated silk litz wire

,

40 strand silk covered copper wire

,

3500V high voltage litz wire


Ürün Açıklaması

USTC Class 155 0.2mm*40 Insulated Silk Covered Copper Litz Wire 3500V
This type of silk covered Litz wire has a wide range of applications, including transformer windings, voice coil wiring, and electric vehicle charging stations. We understand that every project is unique, so we offer customization services. You can specify your exact requirements for conductor specifications, number of strands, stranding method, resistance, and outer diameter. Our professional team is dedicated to helping you design silk-covered Litz wire that perfectly matches your system needs.
Product Specifications
Item Technical requests Test value 1 Test value 2
Single Diameter (mm) 0.216-0.231 0.219 0.223
Conductor diameter (mm) 0.2± 0.003 0.198 0.2
O.D. (mm) Max.1.8 1.57 1.70
Resistance Ω/m (20℃) Max. 0.01443 0.01357 0.01335
Breakdown Voltage V 1600 3800 3600
Pitch mm 33 ±7
No. of strands 40
USTC Class 155 0.2mm*40 Insulated Silk Covered Copper Litz Wire 3500V 0
Please send inquiries directly to request more information or quote!
