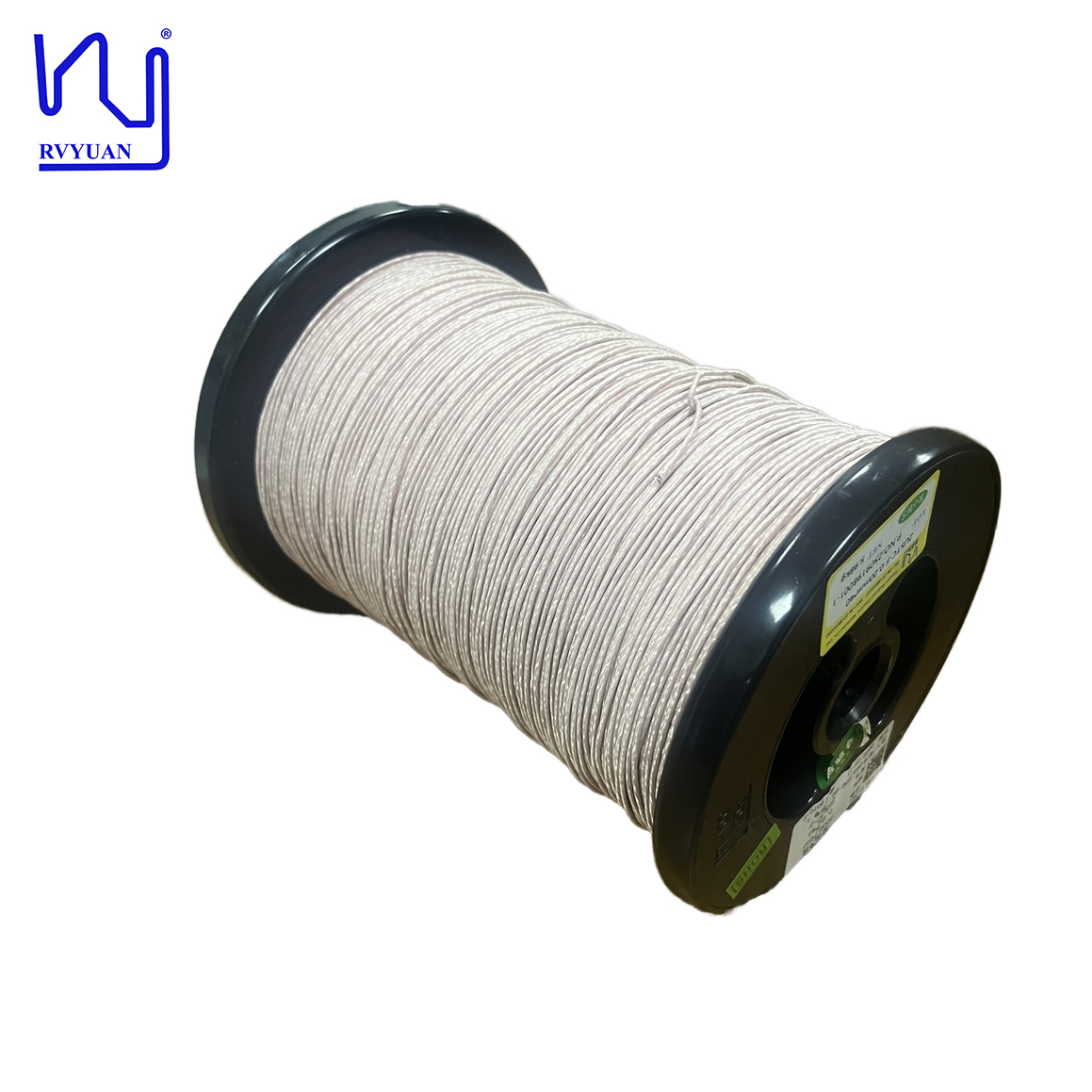

44/0.2mm Class 155/180 Solid Silk Covered Litz Wire Round Type

Temel bilgi

Menşe yeri:	ÇİN
Marka adı:	RVYUAN
Sertifika:	ISO9001/ISO14001 /UL/SGS
Model numarası:	USTC

Min sipariş miktarı:	10kg
Fiyat:	negotiable
Ambalaj bilgileri:	Karton ile makara
Teslim süresi:	2-15 çalışma günü
Ödeme koşulları:	T/ T/ PayPal
Yetenek temini:	Talebinizi tatmin edin

En iyi fiyat Şimdi başvurun

Detay Bilgi

Çap:	0.2 mm	Sıcaklık:	155
Sertifika:	IEC/NEMA/JIS/RoHS/ISO	Şef:	Bakır
İplikler:	40	Arıza voltajı:	Min.1600
Kapak malzemesi:	naylon	Ürün adı:	44/0.2mm Class 155/180 Masif İpek Kaplamalı Litz Tel Yuvarlak Tip
Anahtar kelime:	44/0.2mm Class 155/180 Masif İpek Kaplamalı Litz Tel Yuvarlak Tip
Vurgulamak:	solid silk covered litz wire , 0.2mm litz wire round type , class 155/180 litz wire

Ürün Açıklaması

44/0.2mm Class 155/180 Solid Silk Covered Litz Wire Round Type

44/0.2mm Class 155/180 Solid Silk Covered Litz Wire Round Type is made of enameled wire and Dacron, which can increase the insulation strength, decrease the layer capacitance, and increase the Q value. Twisted USTC wires have features equivalent to the ones of Twisted enameled wires.

Applications

Wireless inductance
High power illumination system
Electroacoustic equipment
Ultrasonic equipment
High frequency induction and transformer
Data cable
Ear phone cable

Product Specifications

Item	Technical requests	Test value 1	Test value 2
Single Diameter (mm)	0.216-0.231	0.219	0.223
Conductor diameter (mm)	0.2± 0.003	0.198	0.2
O.D. (mm)	Max.1.8	1.57	1.70
Resistance Ω/m (20℃)	Max. 0.01443	0.01357	0.01335
Breakdown Voltage V	1600	3800	3600
Pitch mm	33 ±7	√	√
No. of strands	40	√	√

Please send inquiries directly to request more information or quote!
