Ana sayfa > Ürünler> Ustc Litz Tel> USTC 155 0.08mm*210Solid Polyester Enameled Copper Stranded Wire Bare Silk Covered Litz Wire

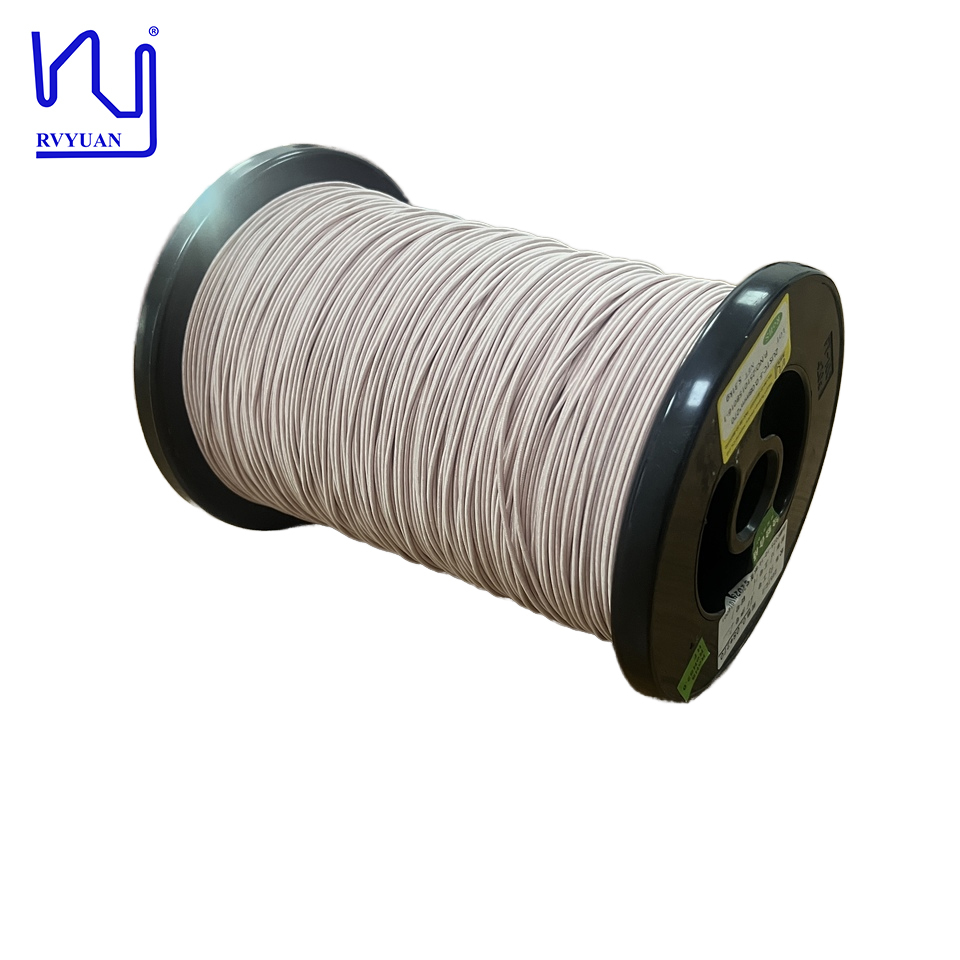

USTC 155 0.08mm*210Solid Polyester Enameled Copper Stranded Wire Bare Silk Covered Litz Wire

USTC 155 0.08mm*210Solid Polyester Enameled Copper Stranded Wire Bare Silk Covered Litz Wire
USTC 155 0.08mm*210Solid Polyester Enameled Copper Stranded Wire Bare Silk Covered Litz Wire
USTC 155 0.08mm*210Solid Polyester Enameled Copper Stranded Wire Bare Silk Covered Litz Wire
Temel bilgi
Menşe yeri: Çin
Marka adı: RVYUAN
Sertifika: ISO9001/ISO14001 /UL/SGS
Model numarası: USTC
Min sipariş miktarı: 10kg
Fiyat: negotiable
Ambalaj bilgileri: Karton ile makara
Teslim süresi: 2-15 çalışma günü
Ödeme koşulları: T/ T/ PayPal
Yetenek temini: Talebinizi tatmin edin
En iyi fiyat Şimdi başvurun
Detay Bilgi
Çap: 0.08mm Sıcaklık: 155
Sertifika: IEC/NEMA/JIS/RoHS/ISO Şef: Bakır
İplikler: 210 Arıza voltajı: Min.1100
Kapak malzemesi: naylon Ürün adı: USTC 155 0.08mm*210 Katı Polyester Emaye Bakır Örgülü Tel Çıplak İpek Kaplı Litz Teli
Anahtar kelime: USTC 155 0.08mm*210 Katı Polyester Emaye Bakır Örgülü Tel Çıplak İpek Kaplı Litz Teli
Vurgulamak:

0.08mm polyester enameled copper wire

,

210 solid stranded litz wire

,

bare silk covered polyester wire

Ürün Açıklaması

USTC 155 0.08mm*210Solid Polyester Enameled Copper Stranded Wire Bare Silk Covered Litz Wire
This silk-covered Litz wire is made of 210 strands of enameled copper wire twisted together to form a strong yet flexible wire cable. This unique design significantly reduces the skin effect and proximity effect common in high-frequency applications. Therefore, the wire improves efficiency and minimizes power loss, making it ideal for high-frequency transformers, wireless chargers, and RF inductors.
Product Specifications
Item No. Our diameter of single wire mm Conductor diameter mm Overall dimension mm Resistance Ω/m Breakdown voltage V Pitch No.Of strands
Tech requirement 0.087-0.103 0.08±0.003 Max.1.81 ≤0.01780 ≥1100 29±5 210
Sample 1 0.09-0.093 0.078-0.08 1.53-1.66 0.01635 3000 √ √
USTC 155 0.08mm*210Solid Polyester Enameled Copper Stranded Wire Bare Silk Covered Litz Wire 0
