PET Taped Litz Wire 0.2mmx80 Copper Stranded Wire

Temel bilgi

Menşe yeri:	Çin
Marka adı:	Rvyuan
Sertifika:	IEC/NEMA/JIS/RoHS/ISO
Model numarası:	bantlanmış litz teli

Min sipariş miktarı:	20 kg
Fiyat:	negotiable
Ambalaj bilgileri:	Karton ile makara
Teslim süresi:	2-15 çalışma günü
Ödeme koşulları:	Müzakere
Yetenek temini:	Talebinizi tatmin edin

En iyi fiyat Şimdi başvurun

Detay Bilgi

İsim:	PET Bantlı Litz Teli 0.2mmx80 Bakır Örgülü Tel	Sertifika:	ISO9001/ISO14001/UL/SGS
Çap:	0.2 mm	Şef:	Bakır
Yalıtım:	PI filmi	Nominal Sıcaklık:	155
Anahtar kelime:	PET Bantlı Litz Teli 0.2mmx80 Bakır Örgülü Tel	Strands sayısı:	80
Vurgulamak:	PET taped Litz wire 0.2mmx80 , copper stranded wire with PET tape , 0.2mmx80 Litz wire for electronics

Ürün Açıklaması

PET Taped Litz Wire 0.2mmx80 Copper Stranded Wire

Mylar Litz wire is a custom conductor designed for high-performance applications, particularly in transformers and inductors. This conductor is meticulously stranded from 80 strands of 0.2mm enameled copper wire, forming a Litz structure. An outer PET protective film enhances the conductor's durability and performance in various environments.

Technical Specifications

Item No.	Our diameter of single wire mm	Conductor diameter mm	Overall dimension mm	Resistance Ω /m	Breakdown voltage V	Overlap%
Tech requirement	0.213-0.227	0.2±0.003	Max.2.84	≤0.007215	4000	Min. 50
Sample 1	0.220-0.223	0.198-0.2	2.46-2.73	0.006814	11700	53

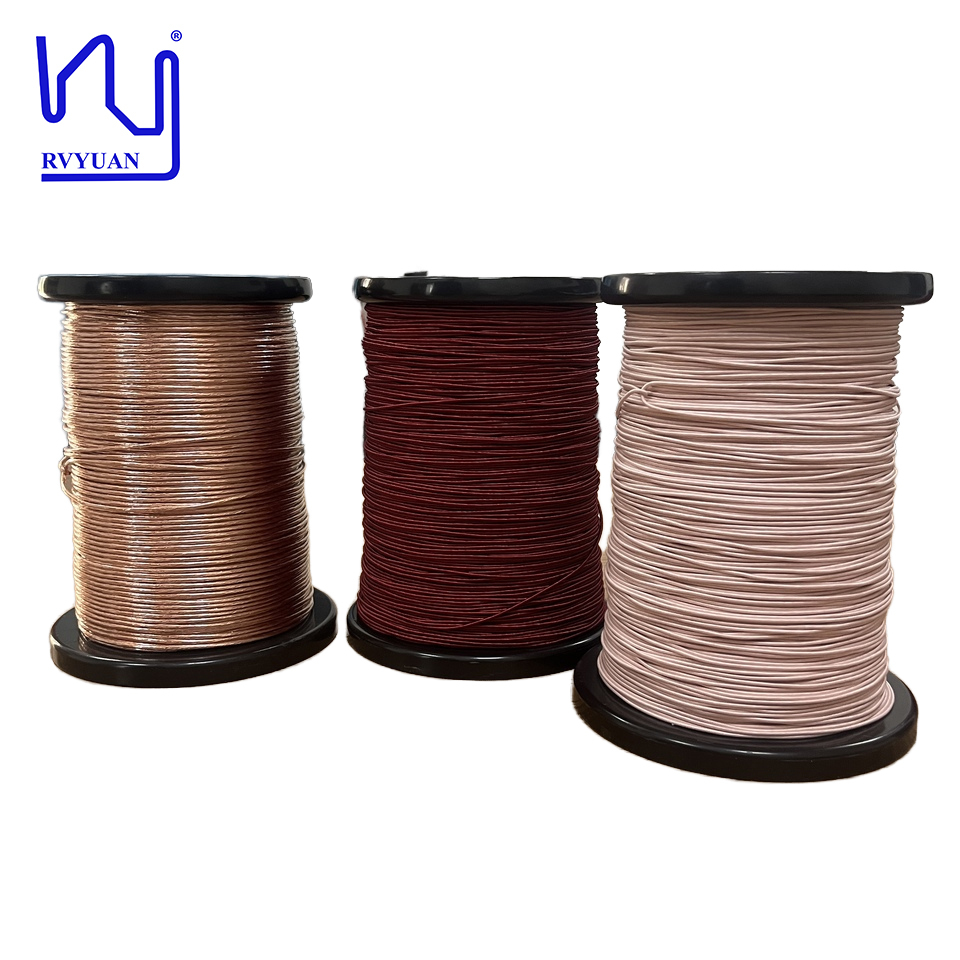

Product Image
