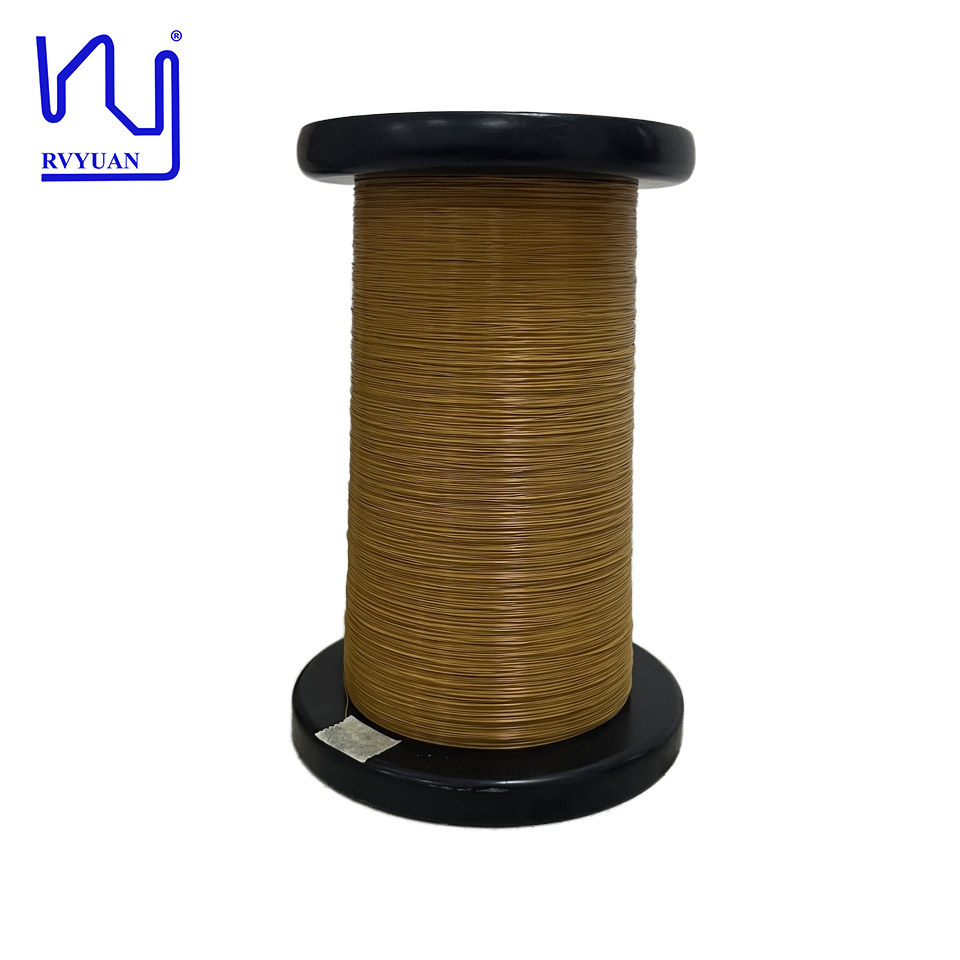

Custom ETFE 155℃ Reinforced Insulation 0.15mm Tripe Insulated Wire

Temel bilgi

Menşe yeri:	Çin
Marka adı:	RVYUAN
Sertifika:	UL/ISO9001/ISO14001/RoHS/Reach
Model numarası:	0.15 mm

Min sipariş miktarı:	3000 metre
Fiyat:	negotiable
Ambalaj bilgileri:	karton
Teslim süresi:	7 Gün
Ödeme koşulları:	T/T/PayPal
Yetenek temini:	1 ton/ay

En iyi fiyat Şimdi başvurun

Detay Bilgi

Ürün adı:	Özel ETFE 155 ℃ Takviyeli Yalıtım 0,15mm İşkembe Yalıtımlı Tel	Termal derecelendirme:	155
Tek tel çapı:	0.15 mm	İletken malzemesi:	Bakır
Yalıtım:	ETFE
Vurgulamak:	Custom ETFE triple insulated wire , 155℃ reinforced insulation wire , 0.15mm triple insulated wire

Ürün Açıklaması

Custom ETFE 155℃ Reinforced Insulation 0.15mm Triple Insulated Wire

This high-performance triple insulated wire features ETFE material rated for 155℃ operation, delivering superior mechanical and electrical properties for demanding applications.

Key Features

Superior Mechanical Performance: Resists abrasion, puncture, and mechanical damage for use in harsh environments
Exceptional Electrical Insulation: ETFE's high dielectric strength combined with triple insulation minimizes electrical breakdown
High-Temperature Rating: Rated for continuous operation at 155℃
Precision Construction: Tight dimensional tolerances ensure consistent performance

Product Specifications

Item	Standard	Test Result
Outer diameter of conductor (mm)	0.169mm(Max.)	0.163 \| 0.165 \| 0.163
Enamel coating thickness	0.008mm(min.)	0.013 \| 0.016 \| 0.014
Conductor	0.15±0.003mm	0.15 \| 0.149 \| 0.149
Elongation	15%(min.)	30.6 \| 30.6 \| 30.6
Overall dimension	0.350-0.365mm(max.)	0.359 \| 0.362 \| 0.359
Insulation thickness	0.1±0.01mm(min)	0.099 \| 0.101 \| 0.094
Pinhole	0 M/1 fault(max)	0 \| 0 \| 0
Resistance	1037Ω,km(max)	1007.3 \| 1001.6 \| 1004.8
Breakdown voltage	6KV(min)	16.6 \| 17 \| 17.6
Solderability(±10℃)	450℃ 3s smooth	ok \| ok \| ok

Customization & Support

We support small batch customization with a minimum order quantity of 1000 meters. Our professional team provides technical support and custom specifications are available upon request.
