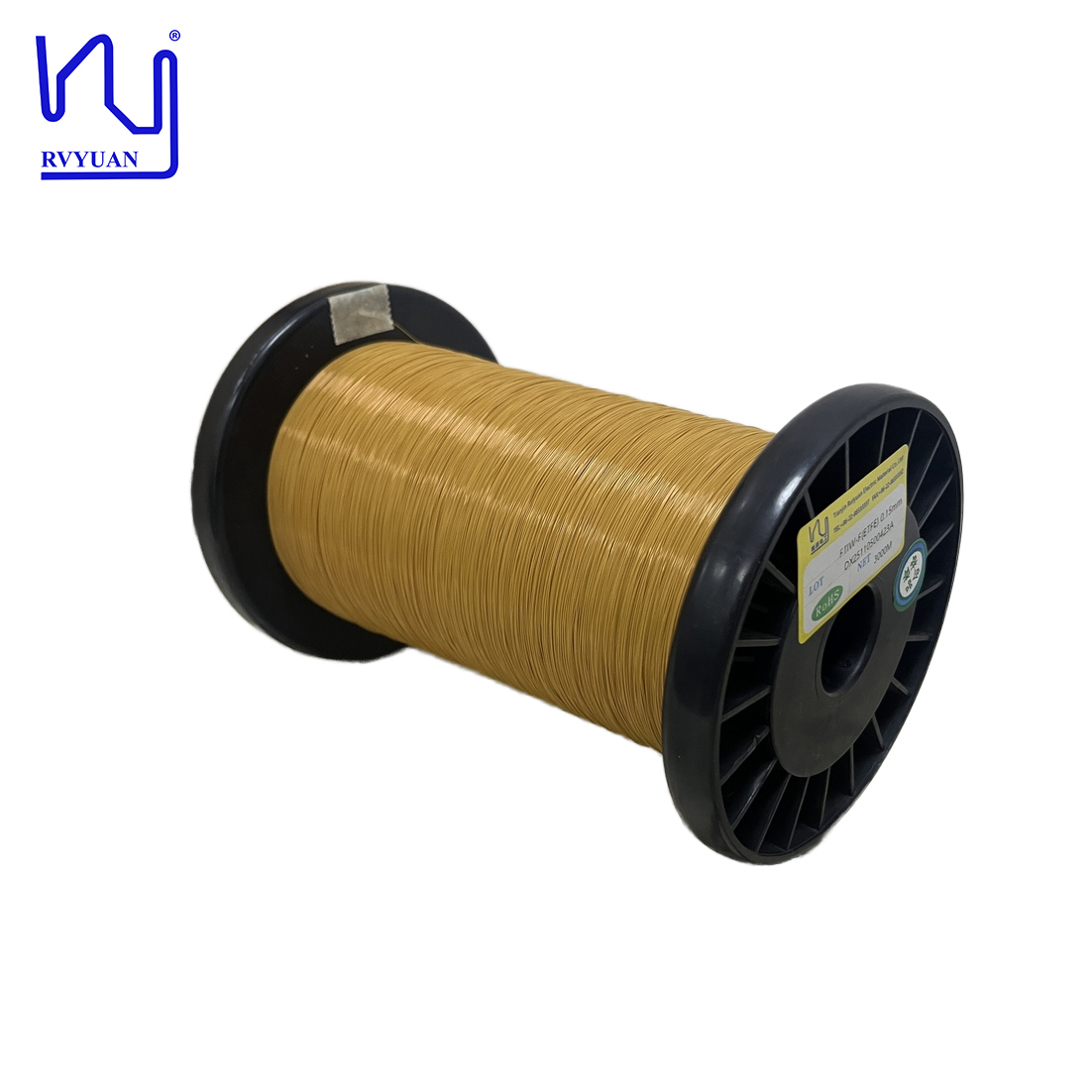

TIW-F 0.15mm Tripe Insulated Wire Copper Conductor For Transformer

Temel bilgi

Menşe yeri:	Çin
Marka adı:	RVYUAN
Sertifika:	UL/ISO9001/ISO14001/RoHS/Reach
Model numarası:	0.15 mm

Min sipariş miktarı:	3000 metre
Fiyat:	negotiable
Ambalaj bilgileri:	karton
Teslim süresi:	7 Gün
Ödeme koşulları:	T/T/PayPal
Yetenek temini:	1 ton/ay

En iyi fiyat Şimdi başvurun

Detay Bilgi

Ürün adı:	TIW-F 0.15mm Trafo İçin İşkembe İzoleli Tel Bakır İletken	Termal derecelendirme:	155
Tek tel çapı:	0.15 mm	İletken malzemesi:	Bakır
Yalıtım:	ETFE
Vurgulamak:	0.15mm triple insulated wire , copper conductor transformer wire , TIW-F triple insulated wire

Ürün Açıklaması

TIW-F 0.15mm Tripe Insulated Wire Copper Conductor For Transformer

TIW-F 0.15mm Tripe Insulated Wire Copper Conductor For Transformer features excellent chemical and heat resistance. ETFE exhibits exceptional resistance to a wide range of chemicals, solvents, oils, and radiation, making it ideal for transformer manufacturing.

Excellent chemical and heat resistance properties
Ideal for transformer manufacturing applications
Small batch customization available (minimum 3,000 meters)
ETFE insulated litz wire options available
Custom size and strand configurations

Product Specifications

Item	Standard	Test Result
Outer diameter of conductor (mm)	0.169mm(Max.)	0.163 \| 0.165 \| 0.163
Enamel coating thickness	0.008mm(min.)	0.013 \| 0.016 \| 0.014
Conductor	0.15±0.003mm	0.15 \| 0.149 \| 0.149
Elongation	15%(min.)	30.6 \| 30.6 \| 30.6
Overall dimension	0.350-0.365mm(max.)	0.359 \| 0.362 \| 0.359
Insulation thickness	0.1±0.01mm(min)	0.099 \| 0.101 \| 0.094
Pinhole	0 M/1 fault(max)	0 \| 0 \| 0
Resistance	1037Ω,km(max)	1007.3 \| 1001.6 \| 1004.8
Breakdown voltage	6KV(min)	16.6 \| 17 \| 17.6
Solderability(±10℃)	450℃ 3s smooth	ok \| ok \| ok

Customization & Support

We support small batch customization with a minimum order quantity of 1,000 meters. Our professional team provides technical support and custom specifications are available upon request.
