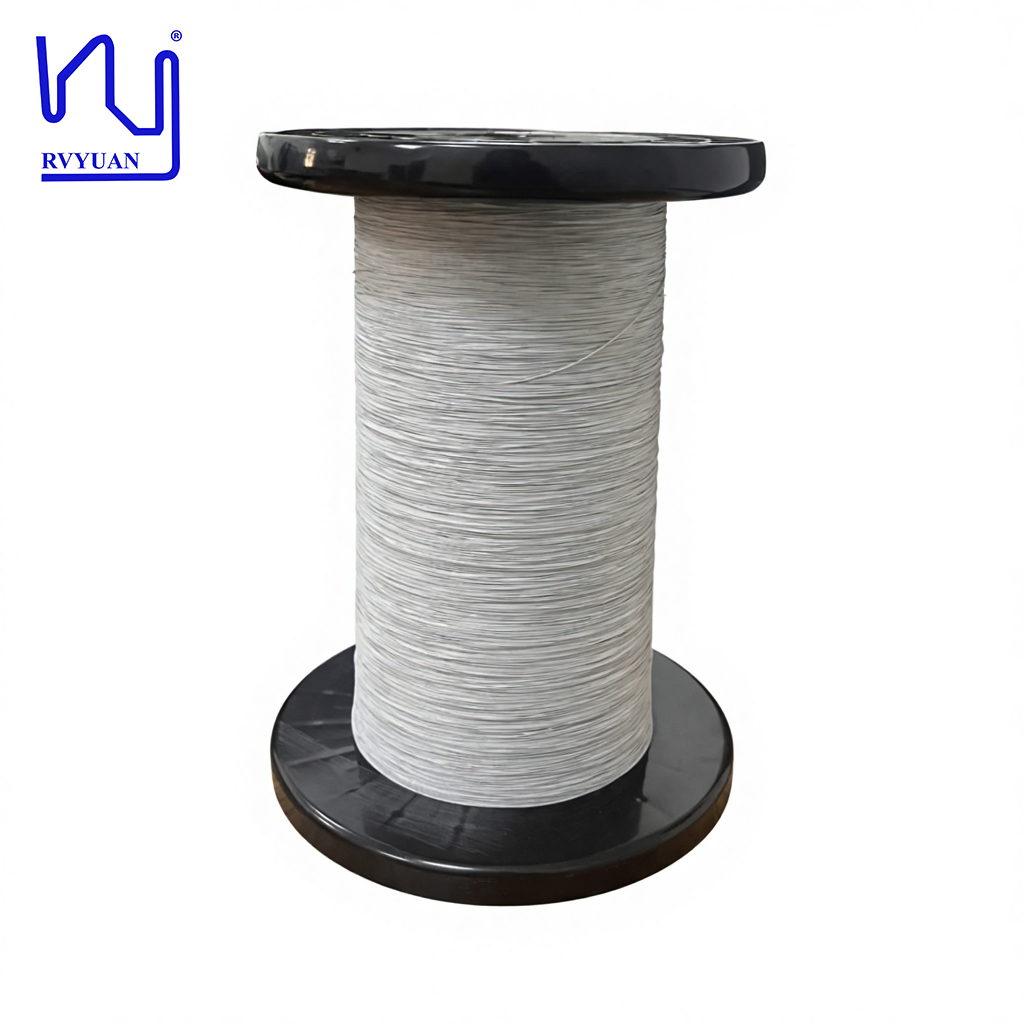

Copper-Nickel Alloy wire Dia.0.2mm

Temel bilgi

Menşe yeri:	Çin
Marka adı:	RVYUAN
Sertifika:	UL/ISO9001/ISO14001/RoHS/Reach
Model numarası:	CN

Min sipariş miktarı:	10 kg
Fiyat:	negotiable
Ambalaj bilgileri:	karton
Teslim süresi:	2-15 gün
Ödeme koşulları:	PayPal/ T/ T
Yetenek temini:	100kg/hafta

En iyi fiyat Şimdi başvurun

Detay Bilgi

Ürün Adı:	0.2mm bakır-nikel alaşımlı tel	İletken çapı:	0,2 mm
İletken Malzeme:	Bakır-Nikel alaşımı	Anahtar kelime:	Bakır-Nikel Alaşımlı tel
Kapak Malzemesi:	Naylon İplik
Vurgulamak:	Copper-Nickel Alloy wire 0.2mm , Enamelled Copper Nickel wire , 0.2mm diameter Copper-Nickel wire

Ürün Açıklaması

Copper-Nickel Alloy Wire Dia. 0.2mm

Copper-nickel alloy wire offers exceptional performance characteristics that make it an ideal material for demanding applications across multiple industries.

Key Advantages

Excellent Conductivity: Provides efficient current transmission and ensures stable electrical connections
Corrosion Resistance: Performs reliably in humid or corrosive environments, resisting oxidation and extending service life
Biocompatibility: Suitable for medical devices and implants, reducing infection risks in healthcare applications
Mechanical Strength: High strength and toughness to withstand significant mechanical stress
Thermal Stability: Maintains performance integrity even under high-temperature conditions

Quality Test Report

Characteristics	Technical Requirements	Sample 1	Sample 2	Sample 3	Conclusion
Surface	Good	OK	OK	OK	OK
Conductor Diameter	0.200 ±0.005mm	0.201	0.202	0.202	OK
Conductor Resistance (20°C Ω/m)	15.6-16.75	15.87	15.82	15.85	OK
Single Wire Elongation	≥ 30%	33.88	32.69	33.29	OK
Breakdown Voltage	≥ 450 V	700	900	800	OK
Bunching Direction	S-Z	S-Z	S-Z	S-Z	OK
Tensile Strength	≥ 380 MPa	392	390	391	OK
