Ana sayfa > Ürünler> Ustc Litz Tel> Copper Stranded Litz Wire 0.071mmx1075 Silk Covered Litz Wire For Wireless Charger

Copper Stranded Litz Wire 0.071mmx1075 Silk Covered Litz Wire For Wireless Charger

Copper Stranded Litz Wire 0.071mmx1075 Silk Covered Litz Wire For Wireless Charger
Copper Stranded Litz Wire 0.071mmx1075 Silk Covered Litz Wire For Wireless Charger
Copper Stranded Litz Wire 0.071mmx1075 Silk Covered Litz Wire For Wireless Charger
Temel bilgi
Menşe yeri: Çin
Marka adı: RVYUAN
Sertifika: ISO9001/ISO14001 /UL/SGS
Model numarası: USTC
Min sipariş miktarı: 10 kg
Fiyat: negotiable
Ambalaj bilgileri: Karton ile biriktirme
Teslim süresi: 2-15 iş günü
Ödeme koşulları: Banka havalesi/Paypal
Yetenek temini: Talebinizi karşılayın
En iyi fiyat Şimdi başvurun
Detay Bilgi
Çap: 0.071mm Sıcaklık: 155
Sertifika: IEC/NEMA/JIS/RoHS/ISO İletken: Bakır
Teller: 1075 Arıza gerilimi: Min.950
Kapak Malzemesi: Naylon Ürün Adı: Kablosuz Şarj Cihazı için Bakır Örgülü Litz Teli 0.071mmx1075 İpek Kaplı Litz Teli
Anahtar Kelime: Kablosuz Şarj Cihazı için Bakır Örgülü Litz Teli 0.071mmx1075 İpek Kaplı Litz Teli
Vurgulamak:

Copper stranded Litz wire for wireless charger

,

Silk covered Litz wire 0.071mmx1075

,

Litz wire with silk insulation

Ürün Açıklaması

Copper Stranded Litz Wire 0.071mmx1075 Silk Covered Litz Wire For Wireless Charger

High-quality copper stranded litz wire specifically designed for wireless charger applications, featuring silk covering for optimal performance and durability.

Product Specifications

Single wire diameter: 0.071mm

Number of strands: 1075

Thermal rating: Class 155

Maximum overall dimension: 3.79mm

Minimum Order Quantity: 10KG

Conversion: 1KG = 25M

Construction Details

The single wire is enameled, and after twisting, it's wrapped with nylon yarn on the outside. We also offer polyester yarn alternatives. For high-end audio cable applications, natural silk covering is available.

Technical Specifications
Item No. Outer diameter of single wire (mm) Conductor diameter (mm) Overall dimension (mm) Resistance (Ω/m) Breakdown voltage (V) Pitch
Tech requirement 0.077-0.084 0.071±0.003 Max. 3.79 ≤0.004642 ≥950 40±10
Sample 1 0.079 0.068 3.18 0.004325 2800 ✓
Sample 2 0.081 0.070 3.32 0.044317 2700 ✓
Product Image

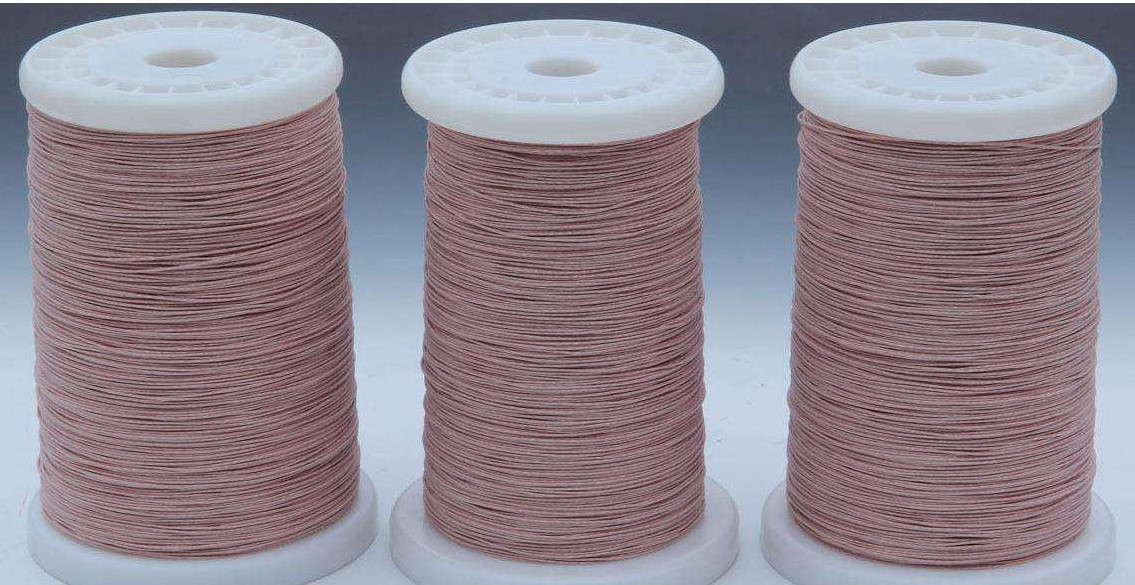

Copper Stranded Litz Wire 0.071mmx1075 Silk Covered Litz Wire For Wireless Charger 0
