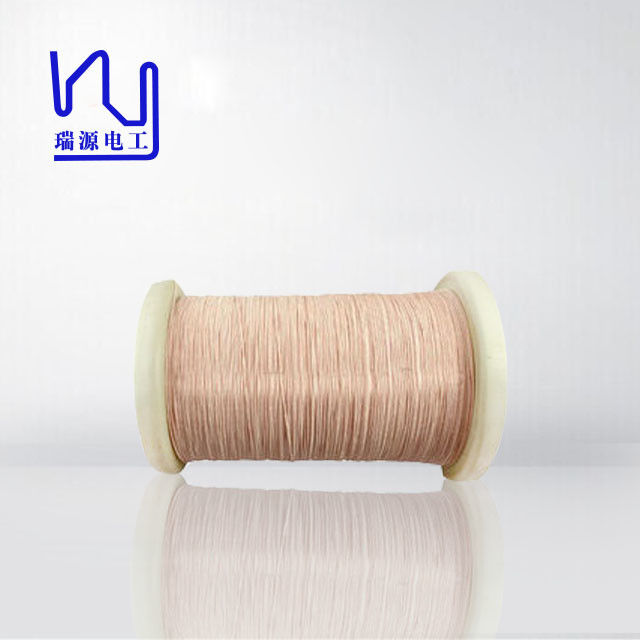

2USTC-F/H Nylon Served Litz Wire Single Wire 0.071mm Stranded Copper Wire

Temel bilgi
Menşe yeri: Çin
Marka adı: RVYUAN
Sertifika: ISO9001/ISO14001 /UL/SGS
Model numarası: USTC
Min sipariş miktarı: 10 kg
Fiyat: negotiable
Ambalaj bilgileri: Karton ile biriktirme
Teslim süresi: 2-15 iş günü
Ödeme koşulları: Banka havalesi/Paypal
Yetenek temini: Talebinizi karşılayın
Detay Bilgi
Çap: 0.071mm Sıcaklık: 155
Sertifika: IEC/NEMA/JIS/RoHS/ISO İletken: Bakır
Teller: 1075 Arıza gerilimi: Min.950
Kapak Malzemesi: Naylon Ürün Adı: 2USTC-F/H Naylon Servisli Litz Tel Tek Tel 0.071mm Örgülü Bakır Tel
Anahtar Kelime: 2USTC-F/H Naylon Servisli Litz Tel Tek Tel 0.071mm Örgülü Bakır Tel
Vurgulamak:

Nylon served Litz wire

,

0.071mm stranded copper wire

,

USTC-F/H single wire


Ürün Açıklaması

2USTC-F/H Nylon Served Litz Wire Single Wire 0.071mm Stranded Copper Wire
Ruiyuan offers customized Litz wire solutions designed to meet specific customer needs. Our product range includes not only Litz wire, but also nylon serving litz wire and tape Litz wire, all available with copper, silver, or silver-plated conductors. Ruiyuan supports small-batch customization to ensure you receive specifications perfectly suited to your application requirements.
Technical Specifications
Item No. Outer diameter of single wire (mm) Conductor diameter (mm) Overall dimension (mm) Resistance (Ω/m) Breakdown voltage (V) Pitch
Tech requirement 0.077-0.084 0.071±0.003 Max. 3.79 ≤0.004642 ≥950 40±10
Sample 1 0.079 0.068 3.18 0.004325 2800
Sample 2 0.081 0.070 3.32 0.044317 2700
2USTC-F/H Nylon Served Litz Wire Single Wire 0.071mm Stranded Copper Wire 0
Note: √ indicates pitch specification is within required range
