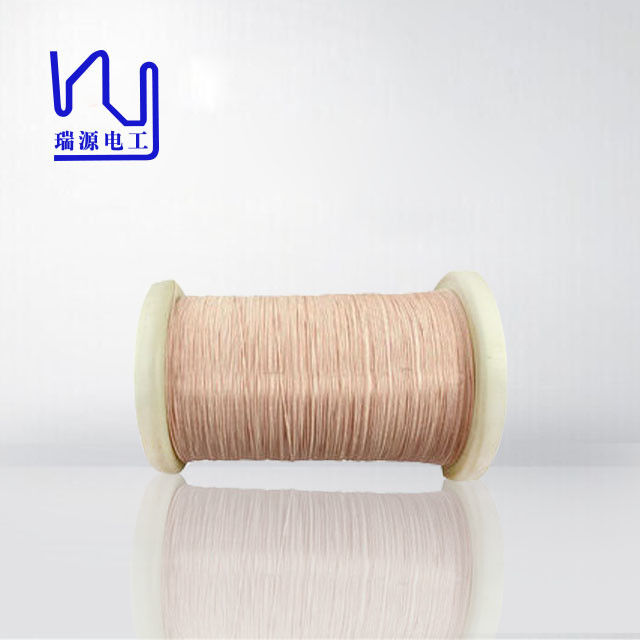

2USTC/UDTC-F 0.071mmx615 Nylon Serving Litz Wire Copper Twisting Wire For Wireless Charger

Temel bilgi

Menşe yeri:	Çin
Marka adı:	RVYUAN
Sertifika:	ISO9001/ISO14001 /UL/SGS
Model numarası:	USTC

Min sipariş miktarı:	10 kg
Fiyat:	negotiable
Ambalaj bilgileri:	Karton ile biriktirme
Teslim süresi:	2-15 iş günü
Ödeme koşulları:	Banka havalesi/Paypal
Yetenek temini:	Talebinizi karşılayın

En iyi fiyat Şimdi başvurun

Detay Bilgi

Çap:	0.071mm	Sıcaklık:	155
Sertifika:	IEC/NEMA/JIS/RoHS/ISO	İletken:	Bakır
Teller:	615	Arıza gerilimi:	Min.950
Kapak Malzemesi:	Naylon	Anahtar Kelime:	2USTC-F/H Naylon Servisli Litz Tel Tek Tel 0.071mm Örgülü Bakır Tel
Vurgulamak:	Nylon serving Litz wire , Copper twisting wire for wireless charger , 0.071mm USTC Litz wire

Ürün Açıklaması

2USTC/UDTC-F 0.071mmx615 Nylon Serving Litz Wire Copper Twisting Wire

This nylon serving litz wire copper twisting wire is specifically designed for wireless charger applications. The combination of litz wire construction with nylon serving provides both electrical advantages and superior physical protection, making it ideal for high-performance, high-frequency applications where reliability is critical.

We support small batch customization with a minimum order quantity of 10kg.

Technical Specifications

Item No.	Outer Diameter of Single Wire (mm)	Conductor Diameter (mm)	Overall Dimension (mm)	Resistance (Ω/m)	Breakdown Voltage (V)	Pitch
Tech Requirement	0.077-0.084	0.071±0.003	Max. 2.83	≤0.008114	≥950	40±10
Sample 1	0.079	0.068	2.24	0.007434	2600	√
Sample 2	0.081	0.070	2.37	0.007385	2500	√
