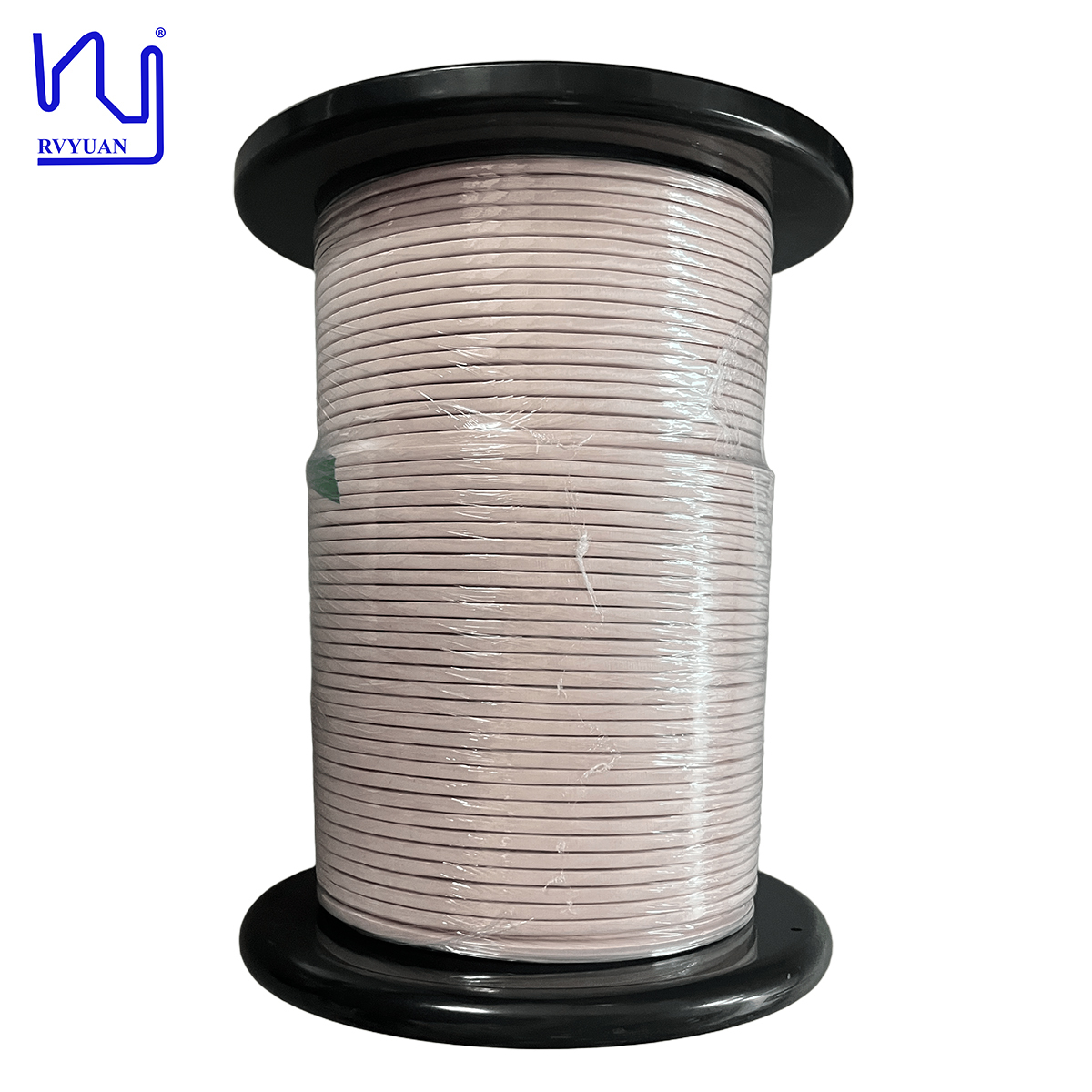

0.05mmx4875 Rectanglar copper Silk Covered Litz Wire For Transformer

Temel bilgi

Menşe yeri:	Çin
Marka adı:	RVYUAN
Sertifika:	ISO9001/ISO14001 /UL/SGS
Model numarası:	USTC

Min sipariş miktarı:	20 kg
Fiyat:	Pazarlık edilebilir
Ambalaj bilgileri:	Karton ile biriktirme
Teslim süresi:	15 iş günü
Ödeme koşulları:	Banka havalesi/Paypal
Yetenek temini:	Talebinizi karşılayın

En iyi fiyat Şimdi başvurun

Detay Bilgi

Çap:	0,05 mm	Sıcaklık:	155
Sertifika:	IEC/NEMA/JIS/RoHS/ISO	İletken:	Bakır
Teller:	4875	Arıza gerilimi:	Min.500
Kapak malzemesi:	Naylon	Anahtar kelime:	Trafo için 0.05mmx4875 Dikdörtgen bakır İpek Kaplı Litz Teli
Vurgulamak:	rectangular copper litz wire , silk covered litz wire , transformer litz wire

Ürün Açıklaması

0.05mm x 4875 Rectangular Copper Silk Covered Litz Wire For Transformer

Product Overview

This flat nylon serving litz wire is specifically designed for use in transformer windings. It is ideal for high-frequency transformers used in power electronics, such as those found in electric vehicle chargers, renewable energy systems, and switching power supplies. By reducing AC losses and enhancing thermal performance, this wire contributes to higher efficiency, reliability, and compactness in advanced transformer designs.

Technical Specifications

Type Conductor diameter*Strand number	2USTC-H 0.054875(4.54.4)
Single wire (strand) conductor diameter (mm)	0.050±0.003
Overall diameter (mm)	0.055-0.069
Thermal Class (°C)	180

Strands Construction

Strands number	First time	39
	Second time	39×5
	Third time	39×5×5
	Fourth time	39×5×5×5

Pitch Specifications

Pitch (mm)	First time	16±8
	Second time	25±10
	Third time	35±10
	Fourth time	65±10
Bunching direction	S/S/S/S

Insulation Layer

Material type	Nylon
Material specs (mm×mm or D)	/
Times of Wrapping	1
Overlap (%) or thickness (mm), mini	0.045
Wrapping direction	Z

Characteristics

Width (mm)	4.5±0.2
Thickness (mm)	4.4±0.2
Max resistance (Ω/Km at 20°C)	2.227
Breakdown voltage Mini (V)	500

All specifications are subject to standard manufacturing tolerances. Contact us for detailed technical data sheets and custom requirements.
