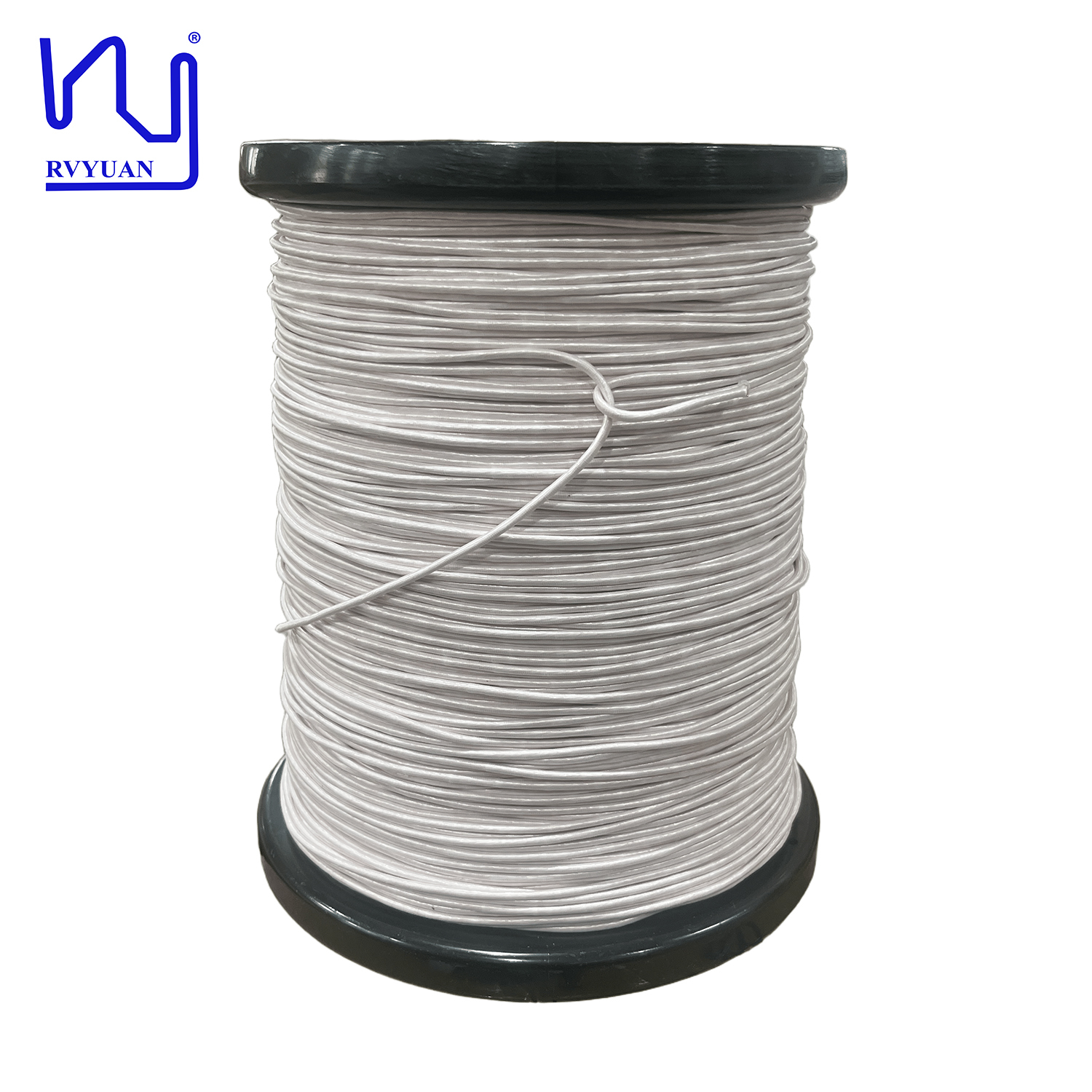

2USTC High Frequency Silk Coated Litz Wire 0.1x300Multi Strand Wires For Transformer

2USTC High Frequency Silk Coated Litz Wire 0.1x300Multi Strand Wires For Transformer
2USTC High Frequency Silk Coated Litz Wire 0.1x300Multi Strand Wires For Transformer
2USTC High Frequency Silk Coated Litz Wire 0.1x300Multi Strand Wires For Transformer
Temel bilgi
Menşe yeri: Çin
Marka adı: RVYUAN
Sertifika: ISO9001/ISO14001 /UL/SGS
Model numarası: USTC
Min sipariş miktarı: 50kg
Fiyat: Pazarlık edilebilir
Ambalaj bilgileri: Karton ile biriktirme
Teslim süresi: 15 iş günü
Ödeme koşulları: Banka havalesi/Paypal
Yetenek temini: Talebinizi karşılayın
En iyi fiyat Şimdi başvurun
Detay Bilgi
Çap: 0,1 mm Sıcaklık: 155
Sertifika: IEC/NEMA/JIS/RoHS/ISO İletken: Bakır
Teller: 50 Arıza gerilimi: Min.1100
Kapak malzemesi: Naylon Anahtar kelime: Trafo için 2USTC Yüksek Frekanslı İpek Kaplı Litz Tel 0.1x300Çok Telli Teller
Vurgulamak:

high frequency litz wire

,

silk coated litz wire

,

multi strand transformer wire

Ürün Açıklaması

2USTC High Frequency Silk Coated Litz Wire 0.1x300 Multi Strand Wires
This nylon serving litz wire is engineered for transformer windings in demanding applications including switch-mode power supplies, high-frequency inverters, and resonant converters. The litz construction significantly reduces AC resistance, enhancing energy efficiency while minimizing heat generation.
Key Applications & Benefits
  • Ideal for transformer windings in high-frequency power conversion circuits
  • Reduces AC resistance for improved energy efficiency
  • Minimizes heat generation in demanding applications
  • Nylon serving provides abrasion resistance and electrical isolation
  • Compact diameter enables higher packing density in transformer cores
  • Excellent voltage rating ensures reliable performance
Technical Specifications
Item Tech Requirement Sample 1 Sample 2
Diameter of Single Wire (mm) 0.107-0.125 0.110 0.113
Conductor Diameter (mm) 0.10±0.003 0.098 0.100
OD (mm) Max. 2.65 2.28 2.38
Resistance Ω/m (20℃) ≤0.007937 0.007391 0.007400
Breakdown Voltage (V) ≥1100 2500 2800
Pitch 47±3 √ √
Pinhole Test 69 faults/6m 18 14
Solderability Temp. 390±5℃ 8s Smooth surface, no pinholes, no residue √ √
2USTC High Frequency Silk Coated Litz Wire 0.1x300Multi Strand Wires For Transformer 0
All specifications are subject to standard manufacturing tolerances. Contact us for detailed technical data sheets and custom requirements.
