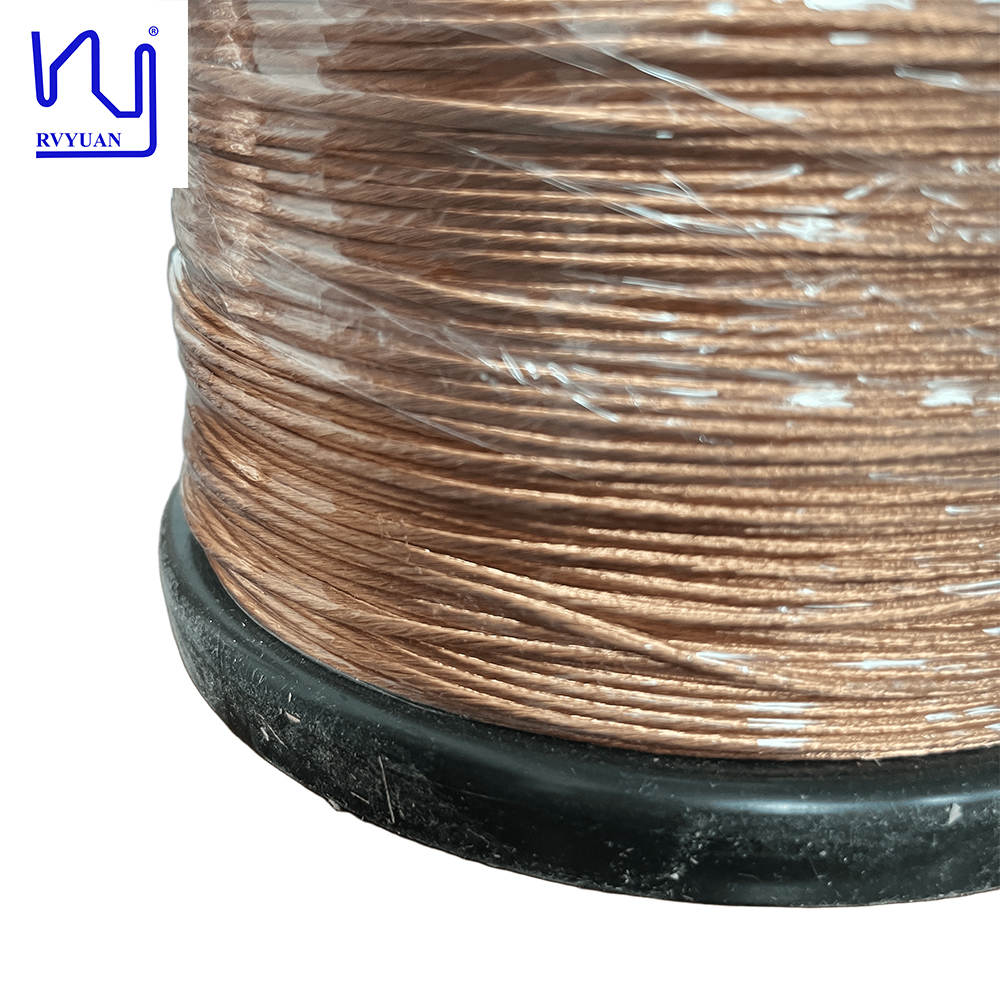

Litz Wire 0.1mm *180 Strands enameled Copper Litz Wires For Transformer

Temel bilgi

Menşe yeri:	Çin
Marka adı:	RVYUAN
Sertifika:	ISO9001/ISO14001 /UL/SGS
Model numarası:	USTC

Min sipariş miktarı:	20 kg
Fiyat:	Pazarlık edilebilir
Ambalaj bilgileri:	Karton ile biriktirme
Teslim süresi:	15 iş günü
Ödeme koşulları:	Banka havalesi/Paypal
Yetenek temini:	Talebinizi karşılayın

En iyi fiyat Şimdi başvurun

Detay Bilgi

Çap:	0,1 mm	Sıcaklık:	180
Sertifika:	IEC/NEMA/JIS/RoHS/ISO	İletken:	Bakır
Teller:	180	Arıza gerilimi:	Min.1100
Anahtar kelime:	Litz Teli 0.1mm * 180 Tel Trafo İçin Emaye Bakır Litz Telleri
Vurgulamak:	0.1mm enameled copper litz wire , 180 strands transformer litz wire , enameled litz wire for transformers

Ürün Açıklaması

Litz Wire 0.1mm × 180 Strands Enameled Copper Litz Wires For Transformer

Premium enameled copper litz wire specifically engineered for high-frequency transformer applications, featuring 180 individually insulated strands for optimal performance.

Key Advantages

Reduced AC Losses - Fine, individually insulated strands minimize skin and proximity effects at high frequencies, significantly lowering AC resistance compared to solid wire for cooler, more efficient transformers
Excellent Flexibility - Multi-strand construction provides exceptional pliability, facilitating winding in tight spaces and around complex core geometries without damaging insulation
High Thermal Reliability - 180°C thermal class maintains stable electrical and mechanical properties under prolonged heat exposure, ensuring long service life in power electronics

Technical Specifications

Item	Requirement	Test Result
Surface	No crack, smooth	OK
Conductor Diameter (mm)	0.1 ± 0.003	0.101
Outer Diameter of Single Wire	0.110-0.125mm	0.112
Number of Strands	180	180
Maximum Outer Diameter	1.94mm	1.74
Pitch	23.5mm ± 2mm	23.0
Resistance	≤ 13.62 Ω/km (20℃)	12.69
Breakdown Voltage	≥ 1.1kV	3.2

All specifications are subject to standard manufacturing tolerances. Contact us for detailed technical data sheets and custom requirements.
