AIW220 High Temperature 0.175mmx0.88 Ultra Fine Rectangular Enameled Copper Wire

Temel bilgi

Menşe yeri:	Çin
Marka adı:	RVYUAN
Sertifika:	IEC/NEMA/JIS/RoHS/ISO
Model numarası:	Sınıf 220

Min sipariş miktarı:	10kg
Fiyat:	Pazarlık edilebilir
Ambalaj bilgileri:	Karton ile biriktirme
Teslim süresi:	2-15 iş günü
Ödeme koşulları:	T/T
Yetenek temini:	Talebinizi karşılayın

En iyi fiyat Şimdi başvurun

Detay Bilgi

Şekil:	Dikdörtgen	Genişlik: kalınlık:	25:1
Uygulamalar:	Motor sargısı	Termal Sınıf:	220
Anahtar kelime:	AIW220 Yüksek Sıcaklık 0.175mmx0.88 Ultra İnce Dikdörtgen Emaye Bakır Tel
Vurgulamak:	ultra fine rectangular enameled copper wire , high temperature rectangular copper wire , 0.175mmx0.88 enameled copper wire

Ürün Açıklaması

AIW220 High Temperature 0.175mm x 0.88mm Ultra Fine Rectangular Enameled Copper Wire

AIW220 High Temperature 0.175mm x 0.88mm Ultra Fine Rectangular Enameled Copper Wire is engineered for compact electromagnetic devices where space optimization is critical. The ultra-fine rectangular profile delivers exceptional performance in miniaturized applications.

Product Overview

This rectangular enameled copper wire features a width of 0.88 mm and an exceptionally thin thickness of 0.175 mm, creating a high aspect ratio ideal for space-constrained designs. The wire is insulated with a high-performance enamel coating rated for thermal class 220°C (Class R), providing superior heat resistance for demanding applications.

Key Features

Ultra-fine rectangular profile: 0.175mm thickness x 0.88mm width
High aspect ratio for maximum space efficiency
220°C thermal class rating (Class R)
High-performance enamel insulation
Non-solderable type - requires mechanical or chemical enamel removal before termination
Ideal for compact electromagnetic devices and miniaturized applications

Technical Specifications

Product Type	Rectangular Enameled Copper Wire
Dimensions	0.175mm x 0.88mm
Thermal Rating	220°C (Class R)
Solderability	Non-solderable type
Application	Compact electromagnetic devices, miniaturized applications

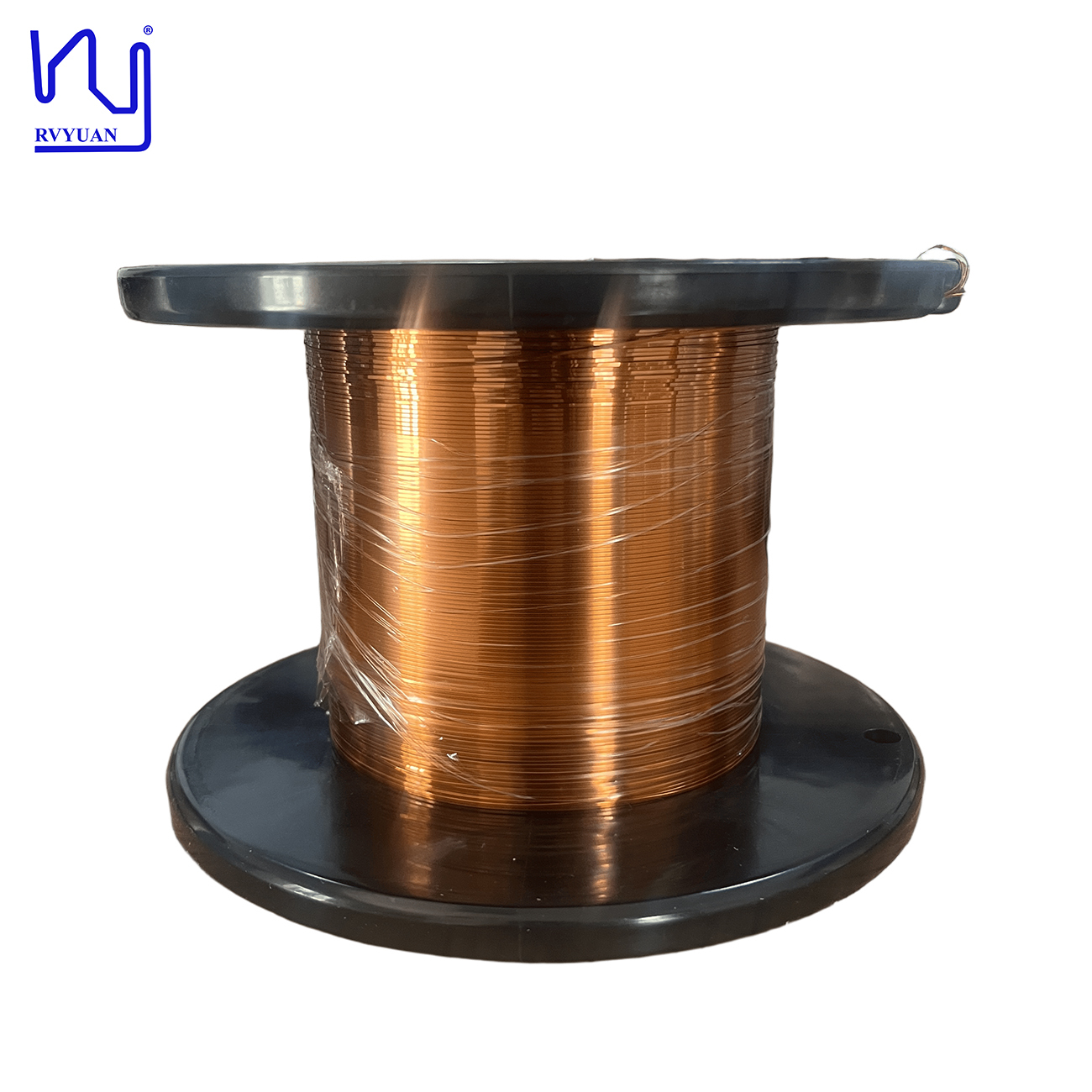

Product Image

Installation Note

This wire is supplied as non-solderable type. The enamel insulation must be mechanically stripped or chemically removed using appropriate methods before electrical termination to ensure proper conductivity and connection reliability.
