Ana sayfa > Ürünler> Ustc Litz Tel> Multiple copper Litz Wires 0.1mm*900 Nylon Serving Litz Wire For Transformer

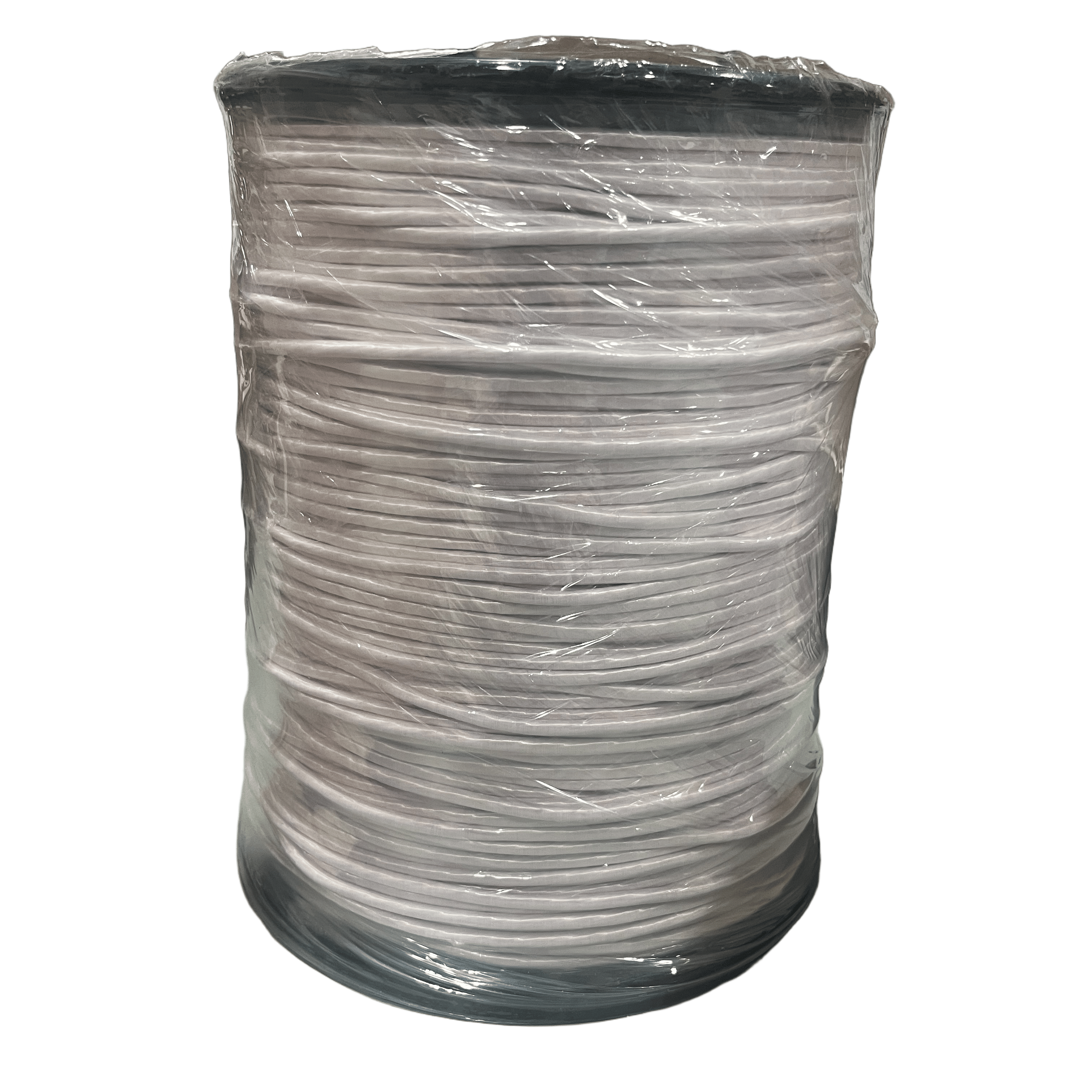

Multiple copper Litz Wires 0.1mm*900 Nylon Serving Litz Wire For Transformer

Multiple copper Litz Wires 0.1mm*900 Nylon Serving Litz Wire For Transformer
Multiple copper Litz Wires 0.1mm*900 Nylon Serving Litz Wire For Transformer
Multiple copper Litz Wires 0.1mm*900 Nylon Serving Litz Wire For Transformer
Temel bilgi
Menşe yeri: Çin
Marka adı: RVYUAN
Sertifika: ISO9001/ISO14001 /UL/SGS
Model numarası: USTC
Min sipariş miktarı: 20 kg
Fiyat: Pazarlık edilebilir
Ambalaj bilgileri: Karton ile biriktirme
Teslim süresi: 15 iş günü
Ödeme koşulları: Banka havalesi/Paypal
Yetenek temini: Talebinizi karşılayın
En iyi fiyat Şimdi başvurun
Detay Bilgi
Çap: 0,1 mm Sıcaklık: 155
Sertifika: IEC/NEMA/JIS/RoHS/ISO İletken: Bakır
Teller: 900 Arıza gerilimi: Min.1100
Kapak malzemesi: Naylon Anahtar kelime: Çoklu bakır Litz Telleri 0.1mm * 900 Naylon Trafo İçin Litz Teline Hizmet Veriyor
Vurgulamak:

copper Litz wire for transformer

,

0.1mm nylon serving Litz wire

,

multiple strand Litz wire

Ürün Açıklaması

Multiple Copper Litz Wires 0.1mm*900 Nylon Serving Litz Wire For Transformer
High-performance multiple copper Litz wire featuring 0.1mm*900 strands with nylon serving, specifically engineered for transformer applications requiring superior high-frequency performance and reliability.
Applications
Transformer windings
Automotive ignition coils
Medical device coils (MRI power supplies)
Aerospace actuators and solenoids
High-reliability custom magnetics
Switch mode power supplies (SMPS)
Inductive charging systems
Technical Specifications
Item No. Diameter of Single Wire (mm) Conductor Diameter (mm) OD (mm) Resistance (Ω/m) Breakdown Voltage (V) Pitch
Tech Requirement 0.107-0.125 0.10±0.003 Max. 4.54 ≤0.002646 ≥1100 65±10
Sample 1 0.110-0.113 0.098-0.10 4.05-4.51 0.002393 2800 √
Multiple copper Litz Wires 0.1mm*900 Nylon Serving Litz Wire For Transformer 0
All specifications are subject to standard manufacturing tolerances. Contact us for detailed technical data sheets and custom requirements.
