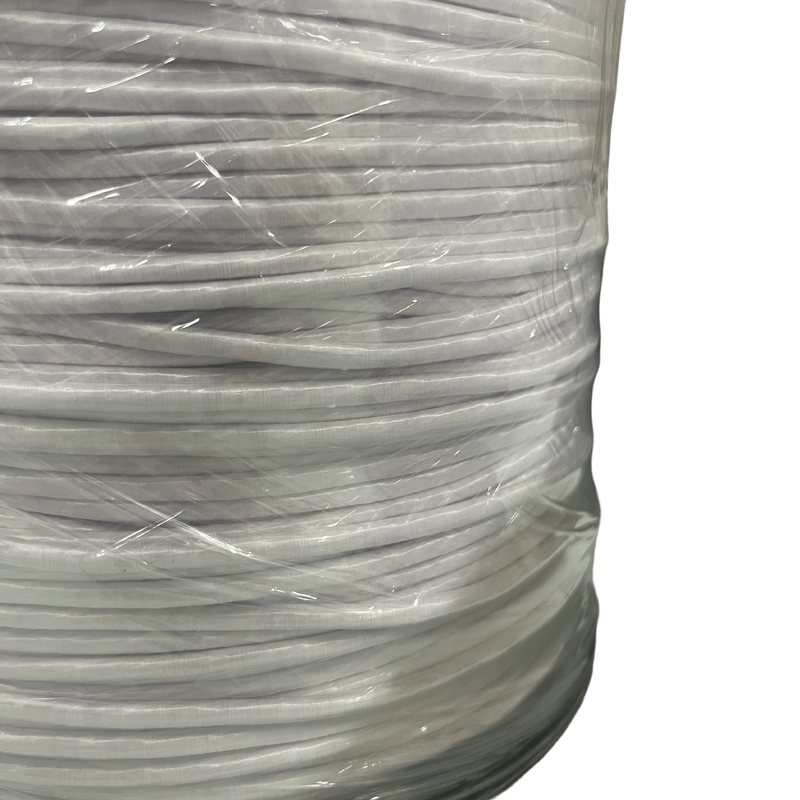

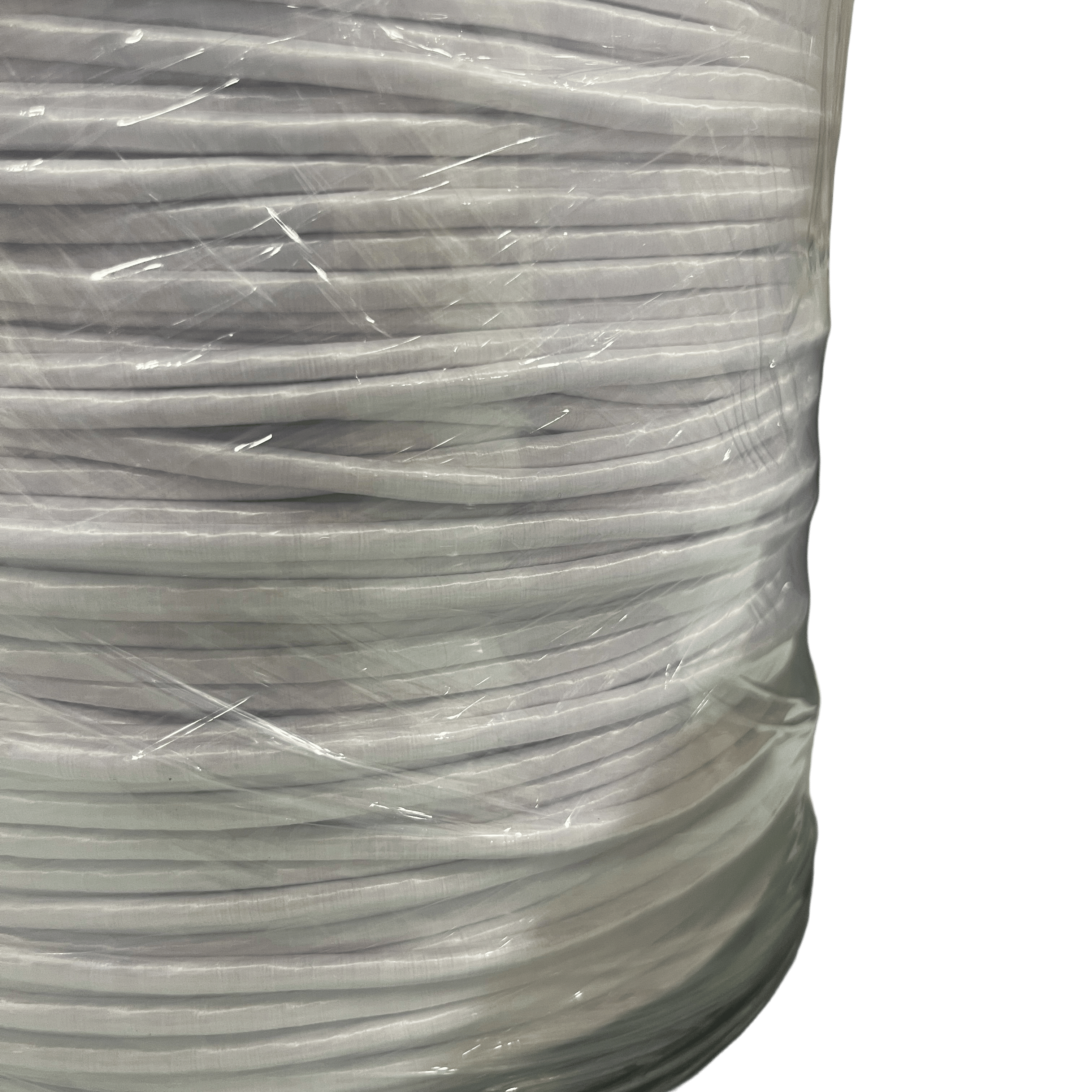

2USTC 38AWG Copper Core Silk Coated Litz Wire 180 Strands for Transformers

2USTC 38AWG Copper Core Silk Coated Litz Wire 180 Strands for Transformers
2USTC 38AWG Copper Core Silk Coated Litz Wire 180 Strands for Transformers
2USTC 38AWG Copper Core Silk Coated Litz Wire 180 Strands for Transformers
Temel bilgi
Menşe yeri: Çin
Marka adı: RVYUAN
Sertifika: ISO9001/ISO14001 /UL/SGS
Model numarası: USTC
Min sipariş miktarı: 20 kg
Fiyat: Pazarlık edilebilir
Ambalaj bilgileri: Karton ile biriktirme
Teslim süresi: 15 iş günü
Ödeme koşulları: Banka havalesi/Paypal
Yetenek temini: Talebinizi karşılayın
En iyi fiyat Şimdi başvurun
Detay Bilgi
Çap: 0,1 mm Sıcaklık: 155
Sertifika: IEC/NEMA/JIS/RoHS/ISO İletken: Bakır
Teller: 900 Arıza gerilimi: Min.1100
Kapak malzemesi: Naylon Anahtar kelime: 2USTC 38AWG Bakır Çekirdekli İpek Kaplı Litz Teli Transformatörler için 180 Tel
Vurgulamak:

38AWG copper core Litz wire

,

silk coated Litz wire for transformers

,

180 strands USTC Litz wire

Ürün Açıklaması

2USTC 38AWG Copper Core Silk Coated Litz Wire 180 Strands for Transformers
High-quality 38AWG copper core litz wire with silk coating, featuring 180 strands specifically designed for transformer and coil applications.
Customization Options
  • Strand count: 2 to 12,500 strands available
  • Individual wire diameter: 0.03mm - 0.5mm
  • Thermal class: Up to 180°C
  • Outer covering materials: Nylon, polyester, or natural silk
  • Upgraded insulation for higher temperature or chemical resistance
Contact us for technical datasheets or custom samples tailored to your transformer or coil design requirements.
Technical Specifications
Item No. Diameter of Single Wire (mm) Conductor Diameter (mm) OD (mm) Resistance (Ω/m) Breakdown Voltage (V) Pitch
Tech Requirement 0.107-0.125 0.10±0.003 Max. 4.54 ≤0.002646 ≥1100 65±10
Sample 1 0.110-0.113 0.098-0.10 4.05-4.51 0.002393 2800 √
2USTC 38AWG Copper Core Silk Coated Litz Wire 180 Strands for Transformers 0
All specifications are subject to standard manufacturing tolerances. Contact us for detailed technical data sheets and custom requirements.
