2UDTC-F 0.071mmx250 Natural Silk Covered Litz Wire

Temel bilgi
Menşe yeri: Çin
Marka adı: RVYUAN
Sertifika: ISO9001/ISO14001 /UL/SGS
Model numarası: USTC
Min sipariş miktarı: 10kg
Fiyat: negotiable
Ambalaj bilgileri: Karton ile makara
Teslim süresi: 2-15 iş günü
Ödeme koşulları: T/T/Paypal
Yetenek temini: Talebinizi tatmin edin
Detay Bilgi
Çap: 0.071mm Sıcaklık: 155
Sertifika: IEC/NEMA/JIS/RoHS/ISO Şef: Bakır
teller: 250 Arıza voltajı: 1300
Yalıtım: UWW Ürün adı: 2UDTC-F 0.071mmx250 Doğal İpek Kapalı Litz Tel
Anahtar kelime: 2UDTC-F 0.071mmx250 Doğal İpek Kapalı Litz Tel
Vurgulamak:

natural silk litz wire

,

0.071mm silk covered wire

,

250 natural silk litz


Ürün Açıklaması

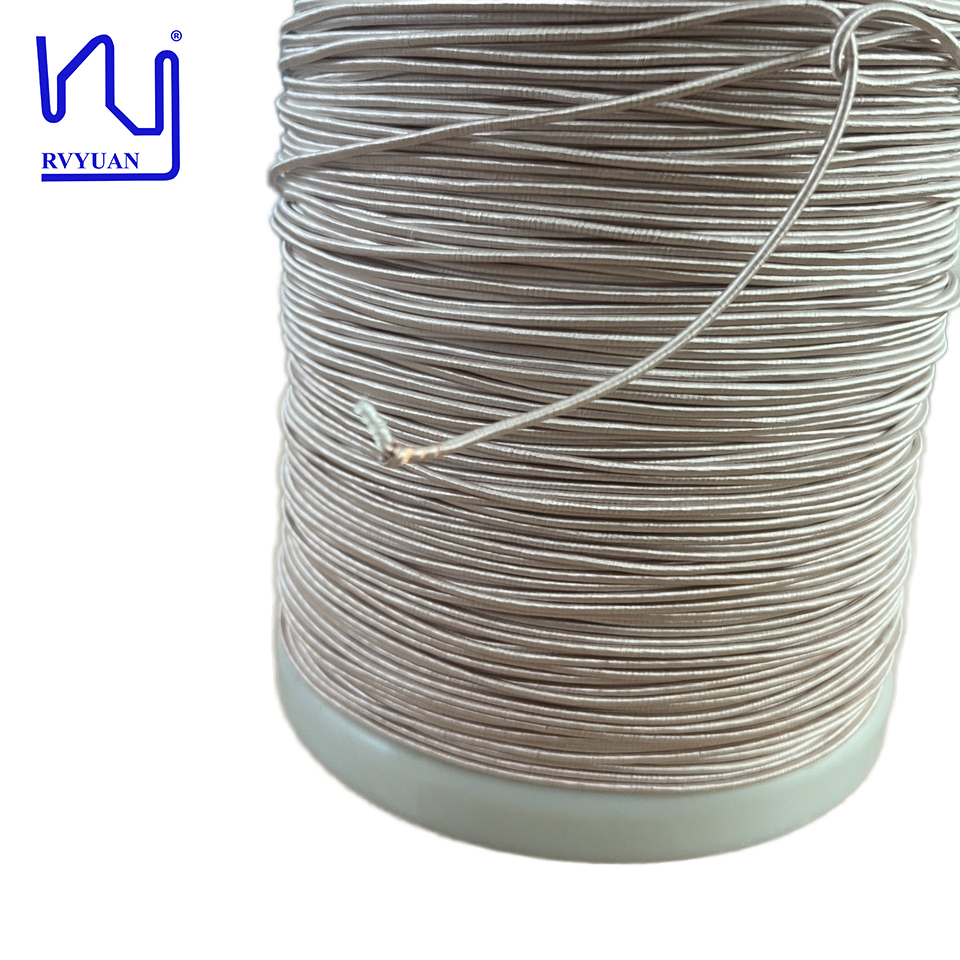

2UDTC-F 0.071mmx250 Natural Silk Covered Litz Wire
Product Specifications
Attribute Value
Diameter 0.071mm
Temperature 155
Certification IEC/NEMA/JIS/RoHS/ISO
Conductor Copper
Strands 250
Breakdown voltage 1300
Insulation UEW
Product Description

We proudly introduce our premium Silk covered Litz Wire, a product meticulously crafted to meet the specific needs of our customers. This exceptional wire features a single 0.071mm enameled silver wire, finely twisted into 250 strands. Elegantly encased in natural silk, it not only looks great but also enhances performance. Our Silk covered Litz Wire is particularly well-suited for transformer winding and voice coil wire production, where precision and reliability are crucial.

Technical Specifications
Item Technical requests Test value 1 Test value 2
Conductor Diameter (mm) 0.076-0.084 0.079 0.080
Single wire diameter (mm) 0.071±0.003 0.068 0.070
O.D. (mm) Max. 1.85 1.57 1.68
Resistance Ω/m (20℃) Max. 0.01196 0.01815 0.01812
Breakdown Voltage V 950 3100 3000
Pitch mm 29± 5
No. of strands 250
2UDTC-F 0.071mmx250 Natural Silk Covered Litz Wire 0
