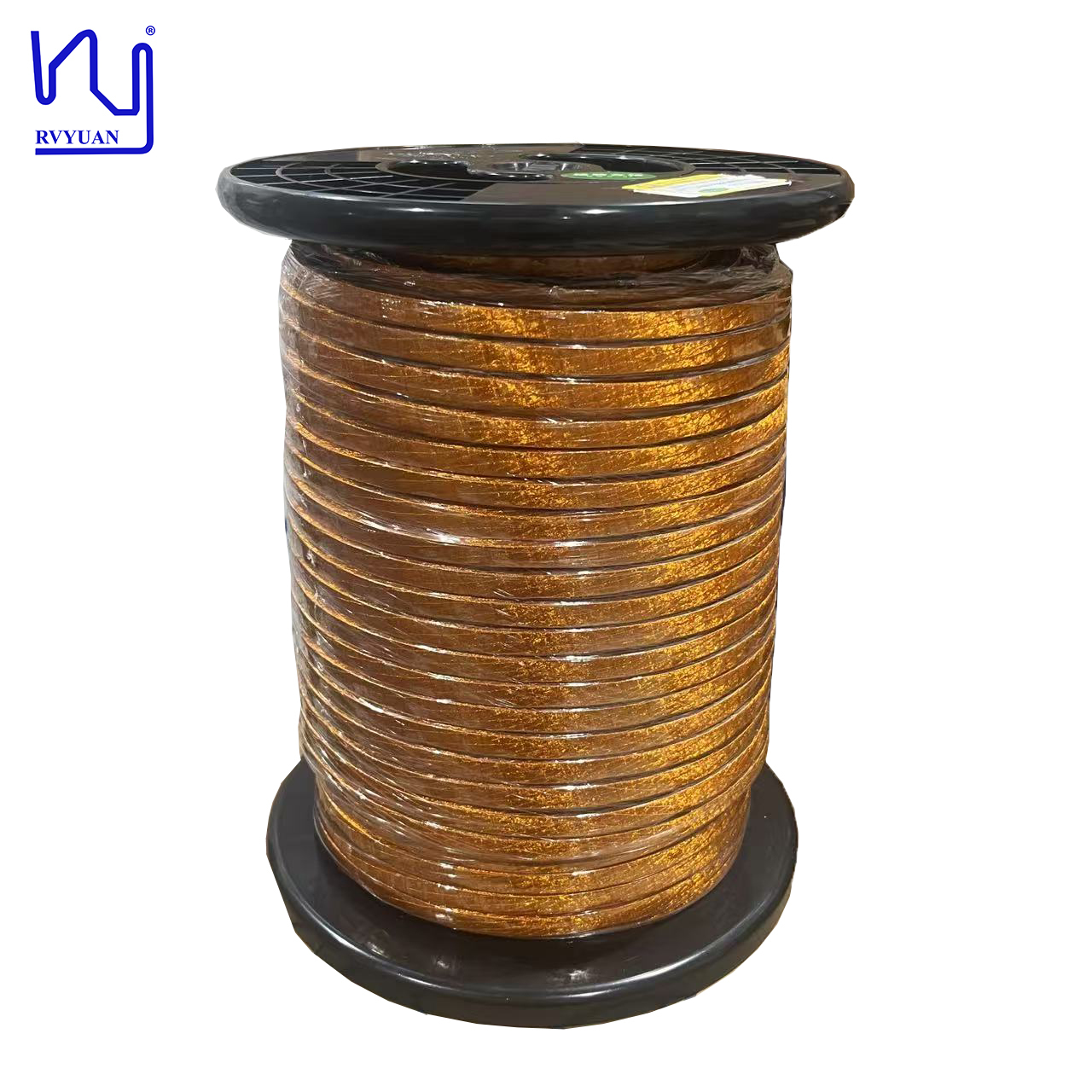

Flat Lit z Wire 0.1mm PI Taped High Voltage Litz Wire For High Frequency Transformer

Flat Lit z Wire 0.1mm PI Taped High Voltage Litz Wire For High Frequency Transformer
Flat Lit z Wire 0.1mm PI Taped High Voltage Litz Wire For High Frequency Transformer
Flat Lit z Wire 0.1mm PI Taped High Voltage Litz Wire For High Frequency Transformer
Temel bilgi
Menşe yeri: Çin
Marka adı: RVYUAN
Sertifika: ISO9001/ISO14001 /UL/SGS
Model numarası: USTC
Min sipariş miktarı: 20kg
Fiyat: negotiable
Ambalaj bilgileri: Karton ile makara
Teslim süresi: 2-15 çalışma günü
Ödeme koşulları: T/ T/ PayPal
Yetenek temini: Talebinizi tatmin edin
En iyi fiyat Şimdi başvurun
Detay Bilgi
Çap: 0.1 mm Sıcaklık: 155
Şef: Bakır İplikler: 3175
Min.Breakdown voltajı: 3600V Yalıtım: UEW/PI Film
Ürün adı: Düz Lit Z Tel 0.1mm Pi Bantlı Yüksek Voltajlı Litz Tel Yüksek Frekanslı Transformatör Anahtar kelime: Düz Lit Z Tel 0.1mm Pi Bantlı Yüksek Voltajlı Litz Tel Yüksek Frekanslı Transformatör
Vurgulamak:

Flat Lit z Wire 0.1mm

,

High Voltage Litz Wire

,

PI Taped Litz Wire

Ürün Açıklaması

Flat Litz Wire 0.1mm PI Taped High Voltage Litz Wire For High Frequency Transformer
Product Description

We support customization. We understand that every application has unique requirements, so we offer tailor-made solutions to meet your specific needs. Whether you require adjustments to outer diameter, single wire gauge, number of strands, or temperature and voltage resistance, our team is dedicated to manufacturing products to your exact specifications. This level of customization ensures that the product you receive not only meets your expectations, but also exceeds them.

Technical Specifications
Item No Single wire Diameter mm Conductor Diameter mm Width mm Thickness mm Resistance Ω/m (20℃) Dielectric strength v Pitch (mm) No.of strands
Tech requirement 0.107-0.125 0.10 8.7 5.5 0.000795 3500 130 3175
± 0.003 0.2 0.2 Max Min 20
1 0.110-0.114 0.098-0.10 8.57-8.71 5.46-5.70 0.000677 4600 130 127*5*5
Flat Lit z Wire 0.1mm PI Taped High Voltage Litz Wire For High Frequency Transformer 0
