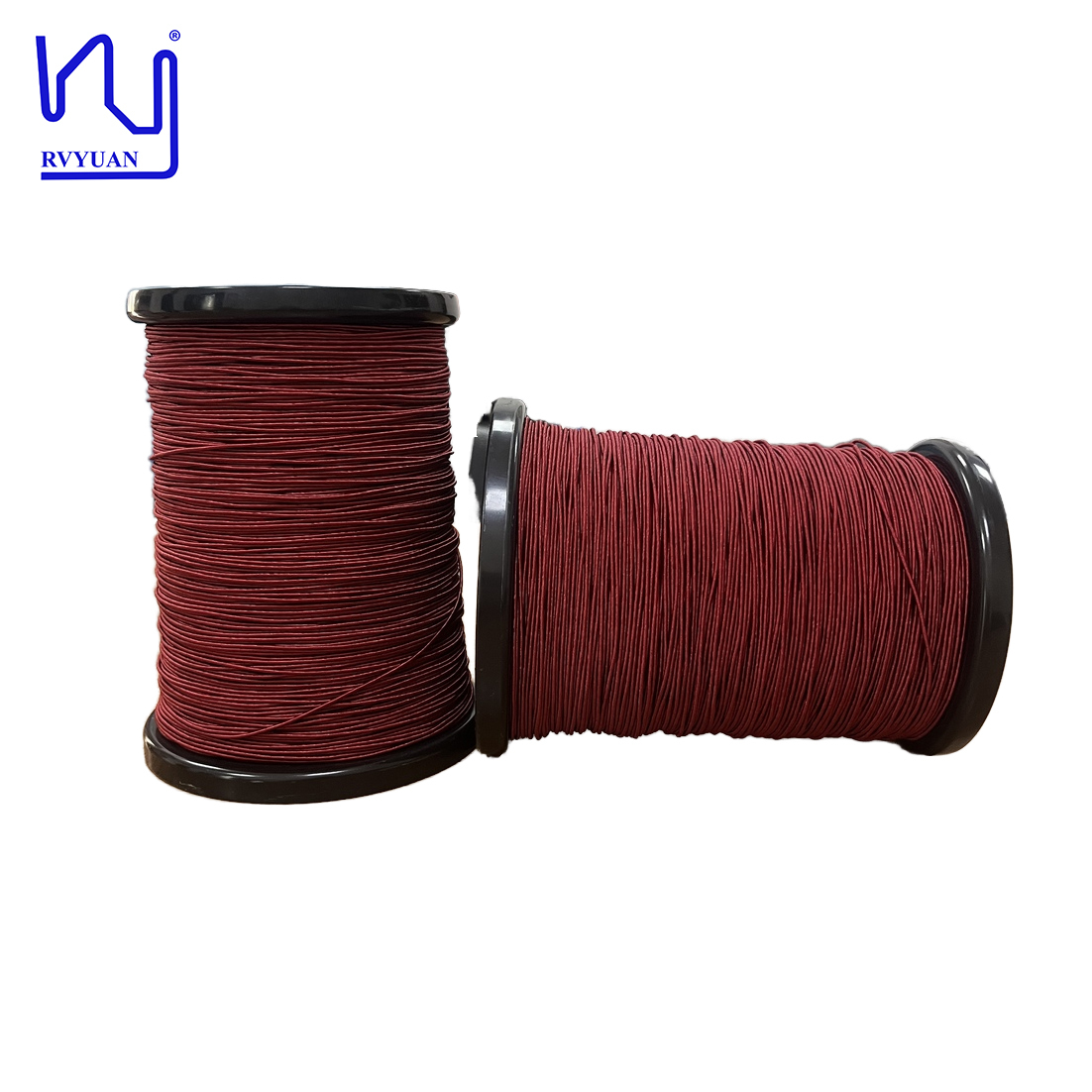

High Frequency Stranded 0.08mm 27 Strands Silk Covered Litz Wire

Temel bilgi
Menşe yeri: Çin
Marka adı: RVYUAN
Sertifika: ISO9001/ISO14001 /UL/SGS
Model numarası: USTC
Min sipariş miktarı: 10kg
Fiyat: negotiable
Ambalaj bilgileri: Karton ile makara
Teslim süresi: 2-15 çalışma günü
Ödeme koşulları: T/ T/ PayPal
Yetenek temini: Talebinizi tatmin edin
Detay Bilgi
Çap: 0.08mm Sıcaklık: 155
Sertifika: IEC/NEMA/JIS/RoHS/ISO Şef: Bakır
İplikler: 270 Arıza voltajı: Min.1100
Kapak malzemesi: naylon Ürün adı: Yüksek Frekans Örgülü 0.08mm 27 Telli İpek Kaplı Litz Teli
Anahtar kelime: Yüksek Frekans Örgülü 0.08mm 27 Telli İpek Kaplı Litz Teli
Vurgulamak:

silk covered litz wire

,

high frequency litz wire

,

27 strands litz wire


Ürün Açıklaması

High Frequency Stranded 0.08mm 27 Strands Silk Covered Litz Wire
Silk covered Litz wire is widely used in transformer windings, wireless chargers for mobile phones, and electric vehicle charging stations. In transformers, its flexibility and durability enable efficient energy transfer and heat dissipation. In wireless chargers, the wire's stability and robustness ensure reliable performance and a long service life; while in electric vehicle charging stations, it supports high-frequency operation, thereby improving charging efficiency and safety.
Product Specifications
Item No. Our diameter of single wire mm Conductor diameter mm Overall dimension mm Resistance Ω/m Breakdown voltage V Pitch
Tech requirement 0.087-0.095 0.08±0.003 Max.2.04 ≤0.01398 ≥1100 29±5
Sample 1 0.89-0.091 0.078-0.08 1.7-1.82 0.01282 2700
High Frequency Stranded 0.08mm 27 Strands Silk Covered Litz Wire 0
