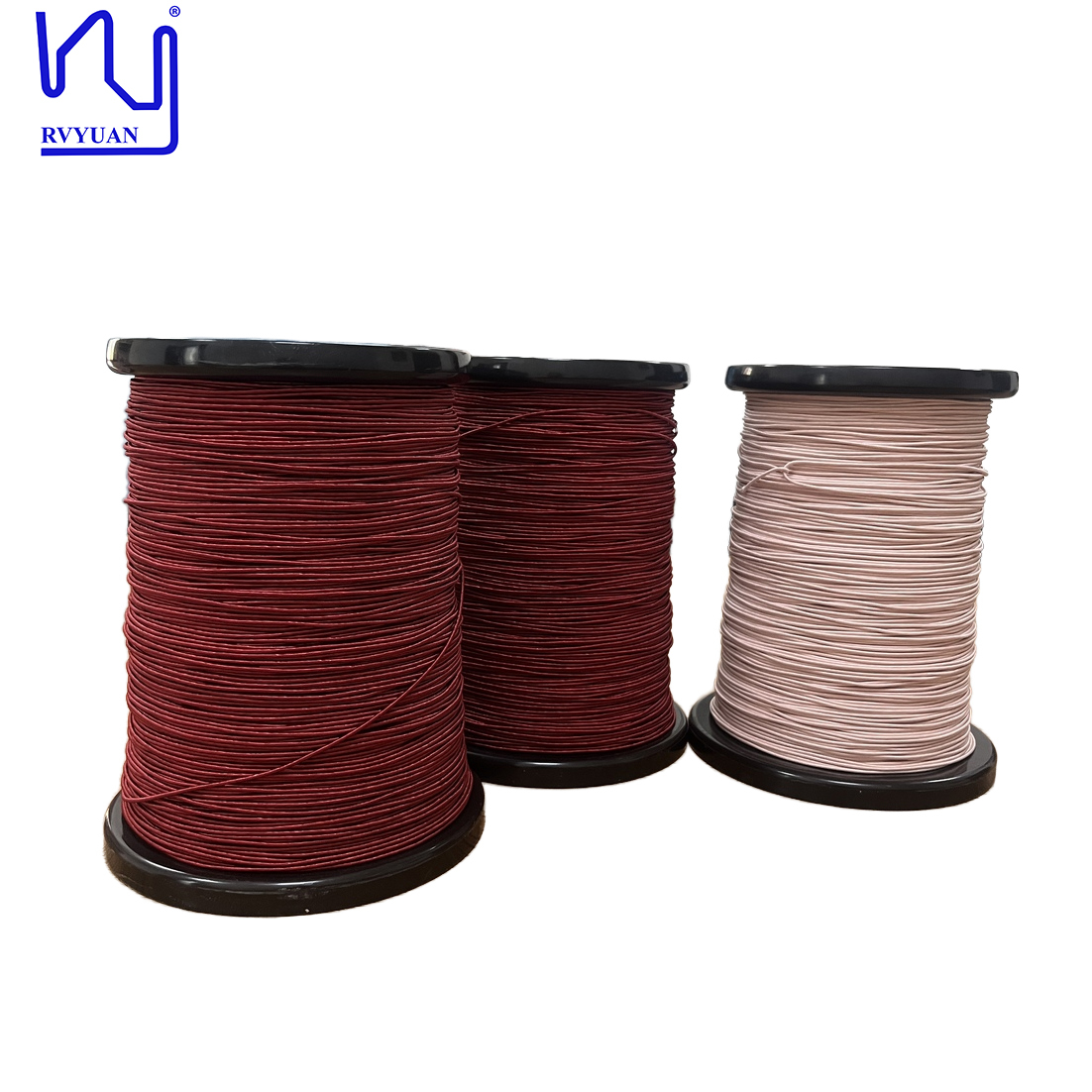

Customized UEW 0.08mm Stranded Silk Covered Litz Wire for Automotive

Customized UEW 0.08mm Stranded Silk Covered Litz Wire for Automotive
Customized UEW 0.08mm Stranded Silk Covered Litz Wire for Automotive
Customized UEW 0.08mm Stranded Silk Covered Litz Wire for Automotive
Temel bilgi
Menşe yeri: Çin
Marka adı: RVYUAN
Sertifika: ISO9001/ISO14001 /UL/SGS
Model numarası: USTC
Min sipariş miktarı: 10kg
Fiyat: negotiable
Ambalaj bilgileri: Karton ile makara
Teslim süresi: 2-15 çalışma günü
Ödeme koşulları: T/ T/ PayPal
Yetenek temini: Talebinizi tatmin edin
En iyi fiyat Şimdi başvurun
Detay Bilgi
Çap: 0.08mm Sıcaklık: 155
Sertifika: IEC/NEMA/JIS/RoHS/ISO Şef: Bakır
İplikler: 270 Arıza voltajı: Min.1100
Kapak malzemesi: naylon Ürün adı: Otomotiv için özelleştirilmiş UEW 0.08mm Örgülü İpek Kaplı Litz Teli
Anahtar kelime: Otomotiv için özelleştirilmiş UEW 0.08mm Örgülü İpek Kaplı Litz Teli
Vurgulamak:

customized UEW litz wire

,

0.08mm silk covered wire

,

automotive stranded litz wire

Ürün Açıklaması

Customized UEW 0.08mm Stranded Silk Covered Litz Wire for Automotive
Silk-covered Litz wire is used in automotive applications for its high-frequency performance, thermal resistance, and ability to handle high-voltage environments in electric vehicles. It is used in critical components like high-voltage wiring harnesses, motor windings, and transformers to reduce energy loss and ensure reliable signal transmission.
Product Specifications
Item No. Our diameter of single wire mm Conductor diameter mm Overall dimension mm Resistance Ω/m Breakdown voltage V Pitch
Tech requirement 0.087-0.095 0.08±0.003 Max.2.04 ≤0.01398 ≥1100 29±5
Sample 1 0.89-0.091 0.078-0.08 1.7-1.82 0.01282 2700 √
Customized UEW 0.08mm Stranded Silk Covered Litz Wire for Automotive 0
