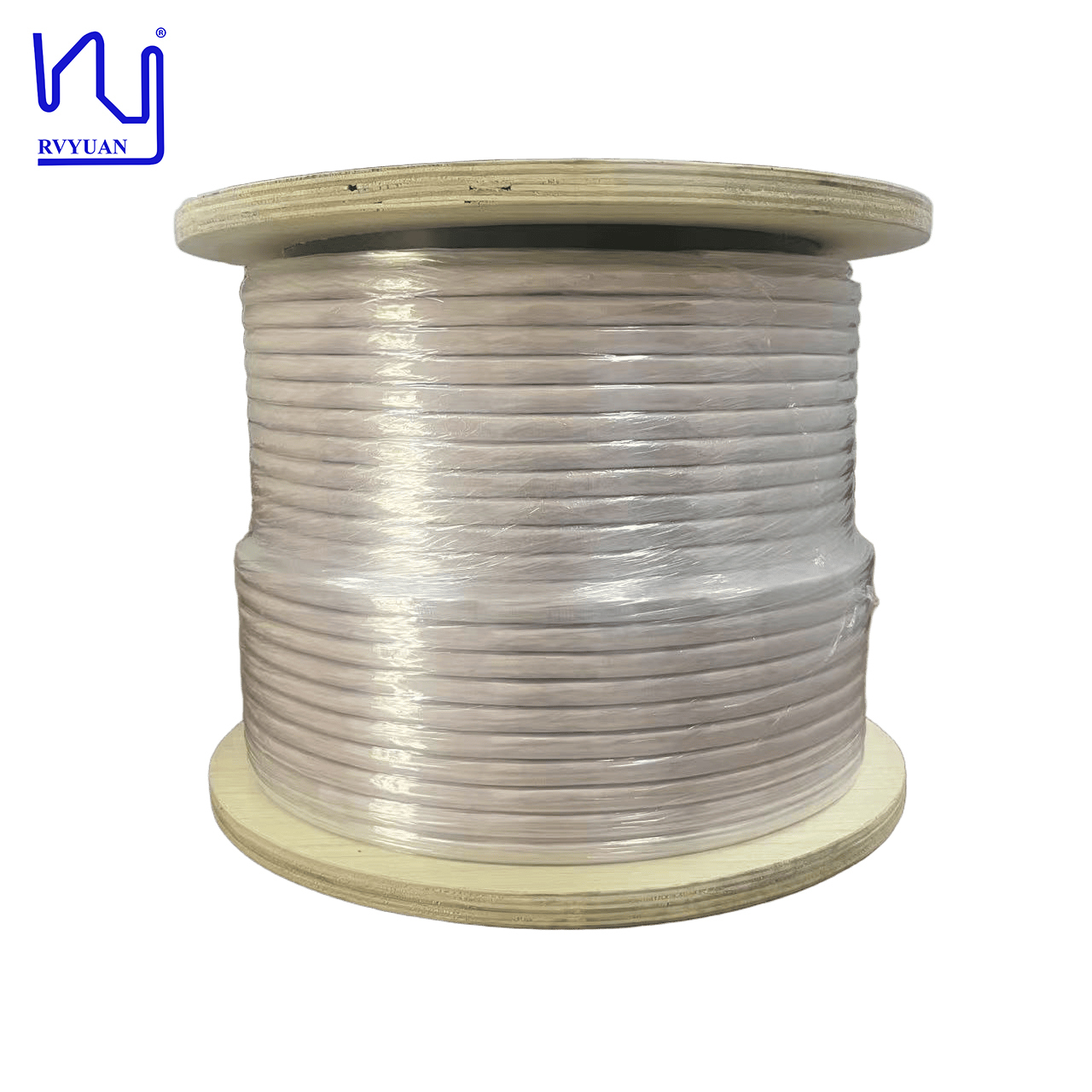

USTC-F/H 0.08mm x 9100 Flat Nylon Serving Copper Litz Wire For Transformer

Temel bilgi

Menşe yeri:	Çin
Marka adı:	RVYUAN
Sertifika:	ISO9001/ISO14001 /UL/SGS
Model numarası:	USTC

Min sipariş miktarı:	50kg
Fiyat:	Pazarlık edilebilir
Ambalaj bilgileri:	Karton ile biriktirme
Teslim süresi:	15 iş günü
Ödeme koşulları:	Banka havalesi/Paypal
Yetenek temini:	Talebinizi karşılayın

En iyi fiyat Şimdi başvurun

Detay Bilgi

Çap:	0,08 mm	Sıcaklık:	155
Sertifika:	IEC/NEMA/JIS/RoHS/ISO	İletken:	Bakır
Teller:	9100	Arıza gerilimi:	Min.500
Kapak malzemesi:	Naylon	Anahtar kelime:	USTC-F/H 0.08mm x 9100 Düz Naylon Trafo İçin Bakır Litz Teli Servis Ediyor
Vurgulamak:	0.08mm flat nylon litz wire , copper litz wire for transformer , USTC-F/H 9100 serving wire

Ürün Açıklaması

USTC-F/H 0.08mm x 9100 Flat Nylon Serving Copper Litz Wire For Transformer

This large-size flat litz wire is engineered for demanding power electronic systems requiring high current capacity and low AC resistance.

Applications

High-power transformers and inductors for switching power supplies, inverters, and renewable energy systems
Induction heating equipment requiring low AC resistance at medium to high frequencies
Electric vehicle (EV) charging stations and onboard chargers with space constraints
Medical imaging devices such as MRI systems where uniform magnetic fields and low losses are critical
Aerospace and defense electronics demanding lightweight, high-reliability conductors

Technical Specifications

Item No.	Wire Diameter (mm)	Conductor Diameter (mm)	Width (mm)	Thickness (mm)	Resistance (Ω/m)	Breakdown Voltage (V)	Pitch
Tech Requirement	0.087-0.103	0.08±0.003	9.90±0.25	9.80±0.25	≤0.000440	≥500	130±20
Sample 1	0.090-0.092	0.077-0.080	9.65-10.10	9.70-10.00	0.000388	680	130

All specifications are subject to standard manufacturing tolerances. Contact us for detailed technical data sheets and custom requirements.
